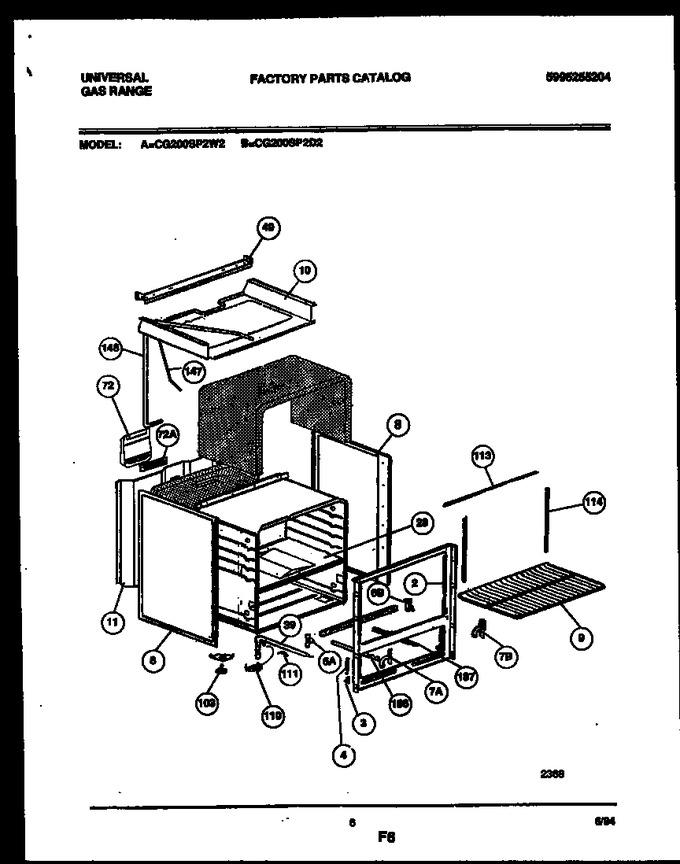

02 - Backguard, Cooktop And Burner Parts


03 - Door And Broiler Drawer Parts


04 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303285746		Bracket-spring		Appelez-nous	-
4	5303285924		Spring-oven Door		Appelez-nous	-
8	5303285711		Side Panel Lt/rt (almond)		Appelez-nous	-
9	5303285927		Rack-oven		Appelez-nous	-
10	5303285928		Burner Box		Appelez-nous	-
11	5303285929		Back-main		Appelez-nous	-
28	5303285930		Bottom-oven		Appelez-nous	-
39	5303285753		Burner-oven		Appelez-nous	-
49	5303285931		Support-burner		Appelez-nous	-
72	5303285760		Vent Box Assy		Appelez-nous	-
103	5303285762		Leveler-leg		Appelez-nous	-
110	5303285749		Valve-oven Safety				$ 477.96
111	5303285763		Pilot Assy-oven				$ 206.69
113	5303285932		Seal-oven Door, Top		Appelez-nous	-
114	5303285764		Seal-oven Door, Sides		Appelez-nous	-
146	5303285933		Tubing-oven Supply		Appelez-nous	-
147	5303285768		Tubing-oven Pilot		Appelez-nous	-
187	5303285769		Broiler Track Rt		Appelez-nous	-
188	5303285770		Broiler Track Lt		Appelez-nous	-
*10325	5303285775		Hinge Pin-oven Door		Appelez-nous	-
*10325	5303285776		Cotter Pin-oven Door		Appelez-nous	-
*10325	5303285764		Seal-oven Door Bottom		Appelez-nous	-
*10325	5303285923		Insulation-front		Appelez-nous	-
*10325	5303285922		Insulation-back		Appelez-nous	-
*10325	5303285921		Insulation-wrapper		Appelez-nous	-
*10325	5303285771		Anti-tip Kit		Appelez-nous	-
*10325	5303305212		Cover-oven Light		Appelez-nous	-
*10325	5303305189		Supply Cord		Appelez-nous	-
6A	5303285925		Hinge Lt Body		Appelez-nous	-
6B	5303285925		Hinge Rt Body		Appelez-nous	-
72A	5303285761		Gasket-vent Box		Appelez-nous	-
7A	5303285926		Hinge Lt Oven Door		Appelez-nous	-
7B	5303285926		Hinge Rt Oven Door		Appelez-nous	-
