01 - Cover
02 - Chest Freezer Parts

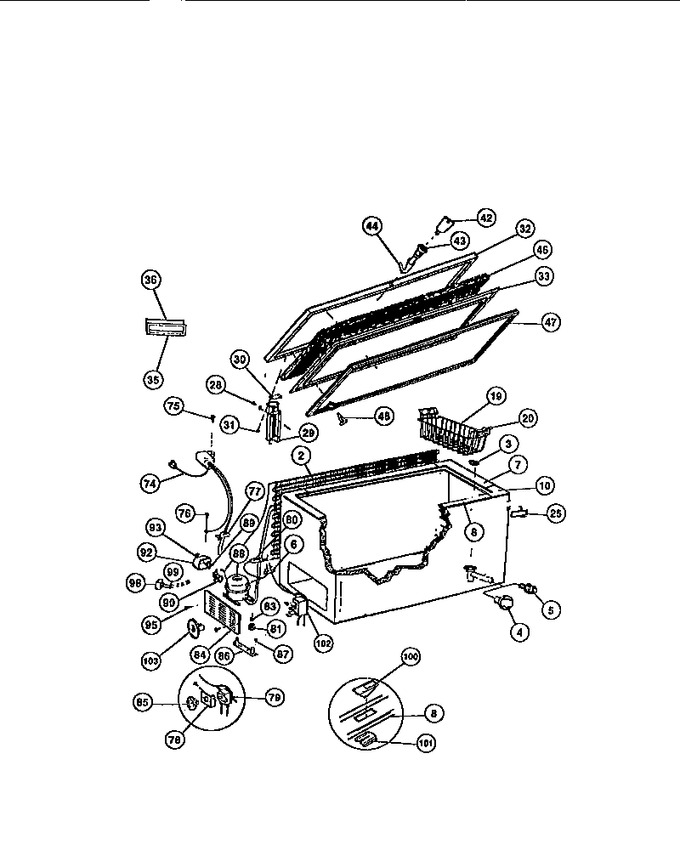

02 - Door, Cabinet & Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5300300172 | Condenser (not Original Equipment. Service Replacement |
|
- | |||||
| 3 | 5306593887 | Plug, Drain, Liner |
|
- | |||||
| 4 | 5300128045 | Plug-drain Shell |
|
- | |||||
| 6 | 06599967 | Grommet |
|
- | |||||
| 7 | 08017009 | Breaker Ends |
|
- | |||||
| 8 | 5300900261 | Breaker Front |
|
- | |||||
| 9 | 5300900261 | Breaker Rear |
|
- | |||||
| 19 | 5308016768 | Basket (2) |
|
- | |||||
| 20 | F129037 | Handle Basket-blue (4) |
|
- | |||||
| 25 | 5317116101 | Bezel Nameplate |
|
- | |||||
| 28 | 5309950602 | Screw Hinge Base (8) |
|
$ 5.30 | |||||
| 29 | 297321900 | Hinge (Replaces: 5303925006) |
|
$ 90.01 | |||||
| 30 | 08037853 | Spacer-hinge Wing (2) |
|
- | |||||
| 31 | 5303091426 | Screw Hinge Wing (8) |
|
- | |||||
| 32 | F129057-S | Lid-panel (white) |
|
- | |||||
| 33 | F129058 | Panel-inner Lid (blue) |
|
- | |||||
| 35 | 08037955 | Handle Recessed |
|
- | |||||
| 36 | 08009392 | Gasket Handle |
|
- | |||||
| 42 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 43 | 5300190358 | Lock-complete |
|
- | |||||
| 44 | 5300300791 | Lock Hook |
|
- | |||||
| 46 | 5300128901 | Insulation Lid |
|
- | |||||
| 47 | 5300128155 | Gasket Lid-white |
|
- | |||||
| 48 | 5303091422 | Clip Panel (46) |
|
- | |||||
| 74 | 08017013 | Wiring Harn W/ Pwr Cord |
|
- | |||||
| 75 | 08009412 | Screw |
|
- | |||||
| 76 | F99483 | Screw-ground Wire |
|
- | |||||
| 77 | 08016762 | Clip Wires |
|
- | |||||
| 78 | 5308016760 | Bracket-control |
|
- | |||||
| 79 | 5308037987 | Cold Control |
|
- | |||||
| 80 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 81 | 5308008778 | Grommet-compr (4) |
|
- | |||||
| 83 | 5309950343 | Clip Compr (4) |
|
- | |||||
| 84 | 5308017004 | Access Panel |
|
- | |||||
| 85 | 5303091432 | Control Knob |
|
- | |||||
| 86 | 08016764 | Support Compr (2) |
|
- | |||||
| 87 | 08016776 | Screw-support |
|
- | |||||
| 88 | 5303916020 | Compressor |
|
- | |||||
| 89 | 5303017753 | Relay |
|
- | |||||
| 90 | 5303206836 | Overload |
|
- | |||||
| 92 | 5303006411 | Cover, Terminal |
|
- | |||||
| 93 | 5303006412 | Clamp Cover |
|
- | |||||
| 95 | 216858001 | Screw-access Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 98 | 5303916391 | Run Capacitor |
|
- | |||||
| 99 | 5303091425 | Harness-run Capacitor |
|
- | |||||
| *44722 | F126786 | Adapter-hose (not Original Equipment. Customer Purchase |
|
- |
