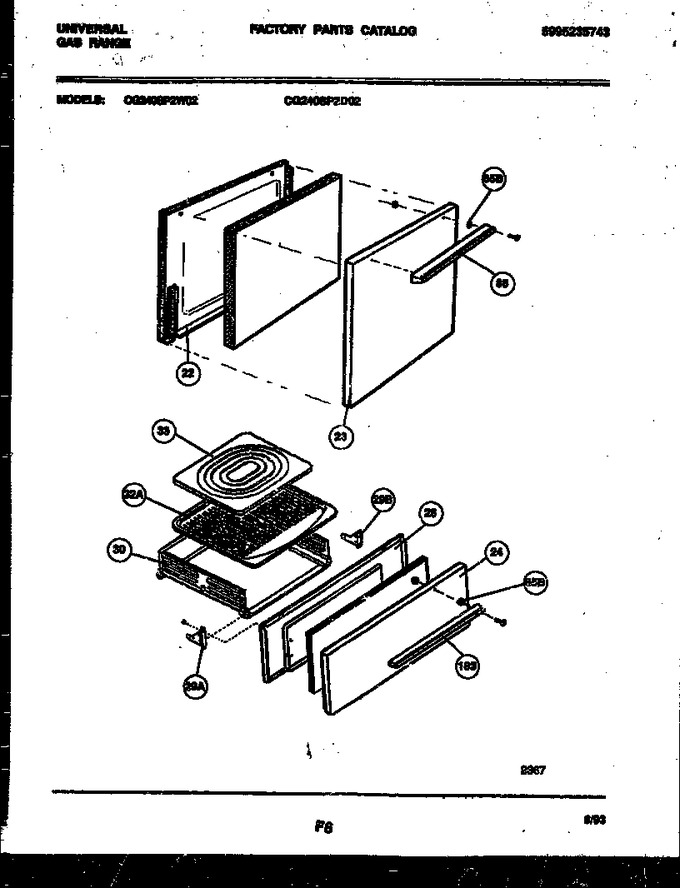

03 - Door And Broiler Drawer Parts
04 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 5303285730 | Liner-oven Door |
|
- | |||||
| 23 | 5303285707 | Panel-oven Door, Almond |
|
- | |||||
| 24 | 5303285709 | Panel-broiler Drawer, Almond |
|
- | |||||
| 25 | 5303285731 | Liner-broiler Drawer |
|
- | |||||
| 30 | 5303285735 | Broiler Body |
|
- | |||||
| 33 | 5303285737 | Broiler Cover |
|
- | |||||
| 85 | 5303285738 | Handle-oven Door |
|
- | |||||
| 183 | 5303285739 | Handle-broiler Drawer |
|
- | |||||
| *78706 | 5303285741 | Insulation-oven Door |
|
- | |||||
| *78707 | 5303285743 | Roller W/ Nut-broiler Drawer |
|
- | |||||
| *78707 | 5303285742 | Insulation-broiler Drawer |
|
- | |||||
| *78707 | 5303285744 | Hinge Shoulder Bolt-drawer |
|
- | |||||
| 29A | 5303285733 | Hinge Lt Broiler Drawer |
|
- | |||||
| 29B | 5303285732 | Hinge Rt Broiler Drawer |
|
- | |||||
| 32A | 5303285736 | Broiler Pan |
|
- | |||||
| 85B | 5303285740 | Spacers-handle |
|
- |
