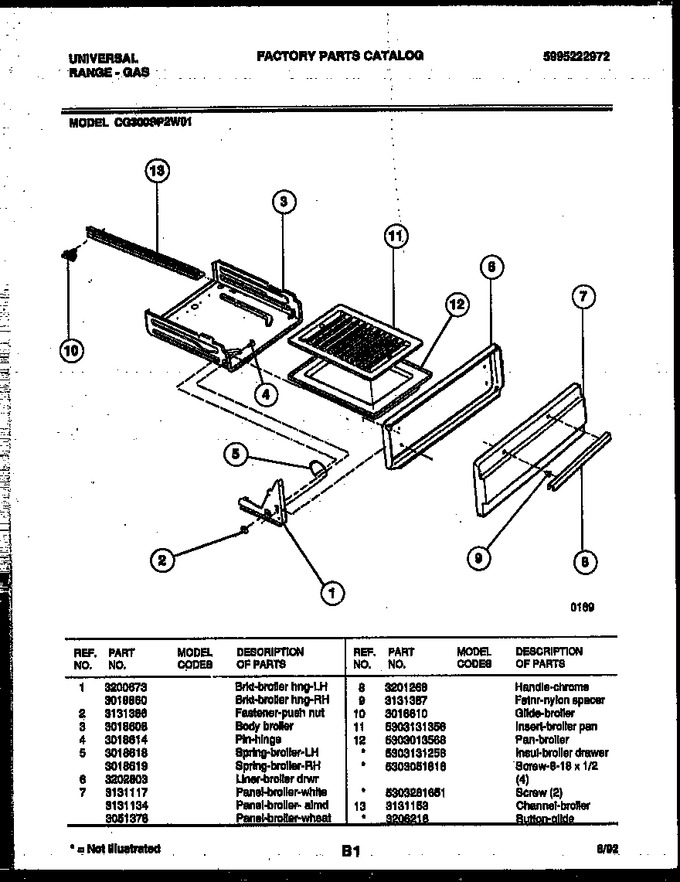

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018860		Brkt-broiler Hng (rh)		Appelez-nous	-
1	3200673		Brkt-broiler Hng (lh)		Appelez-nous	-
2	3131386		Fastener, Push Nut		Appelez-nous	-
3	3018608		Body, Broiler		Appelez-nous	-
4	3018614		Pin-hinge		Appelez-nous	-
5	3018619		Spring-broiler, Rh		Appelez-nous	-
5	3018618		Spring-broiler, Lh		Appelez-nous	-
6	3202803		Liner - Broiler Drwr		Appelez-nous	-
7	3131117		Panel - Broiler White		Appelez-nous	-
7	3051378		Panel-broiler-wheat		Appelez-nous	-
7	3131134		Panel - Broiler Almd		Appelez-nous	-
8	3201268		Handle-chrome		Appelez-nous	-
9	3131387		Fstnr - Nylon Spacer		Appelez-nous	-
10	3018610		Glide-broiler				$ 29.40
11	5303131356		Insert-broiler Pan		Appelez-nous	-
12	5303013568		Pan-broiler		Appelez-nous	-
12	5303051818		Screw-8-18 X 1/2 (4) (non-illustrated)		Appelez-nous	-
12	5303281651		Screw (2) (non-illustrated)		Appelez-nous	-
12	5303131258		Insul - Broiler Drawer (non-illustrated)		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
*73096	3206216		Button Glide		Appelez-nous	-
