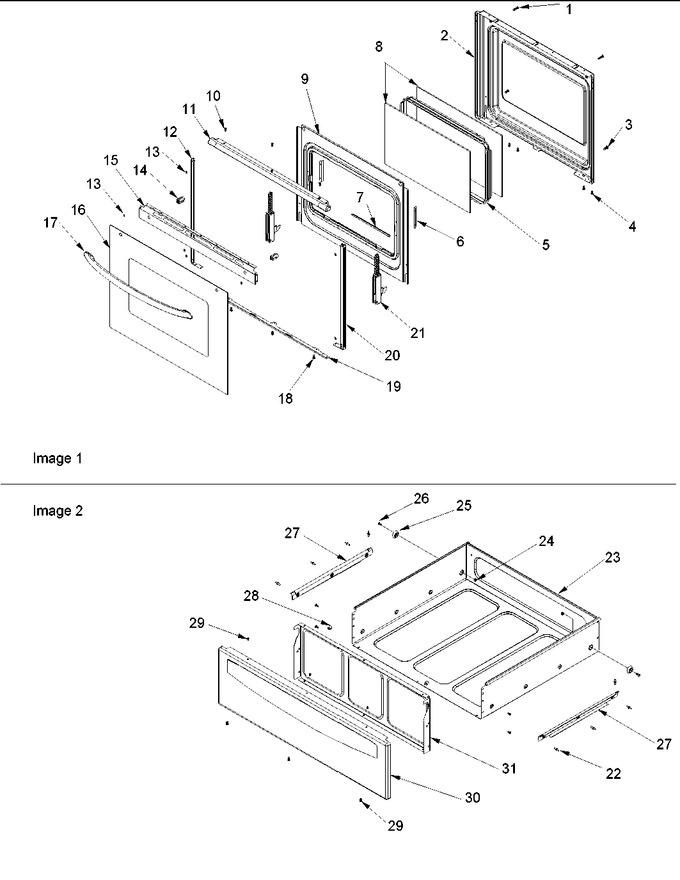

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31750529		Screw, 10-32 X 2.00``		Appelez-nous	-
2	31932203CG		Backer, Oven Door		Appelez-nous	-
3	31750530		Screw, 10-24x .500 Trhdwh(blk)		Appelez-nous	-
4	31750434		Screw, 8-32 X .312 Trhdwh(blk)		Appelez-nous	-
5	31941901		Frame, Window Pack		Appelez-nous	-
6	32050701		Window Brkt, Dr Ht Shield		Appelez-nous	-
7	32050601		Window Brkt, Dr Ht Shield		Appelez-nous	-
8	32028001		Glass, Window		Appelez-nous	-
9	31941401		Shield Backer, Heat (std)		Appelez-nous	-
10	WP98008545		Screw, No.8-18 X .500``   (Replaces: 31750435)				$ 15.94
11	31946401B		Trim, Top Door (blk)		Appelez-nous	-
12	31944507B		Trim, Side Door Lt (blk)		Appelez-nous	-
14	31947901		Bushing, Door Handle (blk)		Appelez-nous	-
15	32039502B		Heat Shield (blk)		Appelez-nous	-
16	32020401B		Glass, Oven Door (blk)		Appelez-nous	-
17	31689501B		Handle, Oven Door (blk)		Appelez-nous	-
19	31944603B		Angle, Glass Support (blk)		Appelez-nous	-
20	31944503B		Trim, Side Door Rt (blk)		Appelez-nous	-
21	31946302		Hinge, Oven Door (xxl)		Appelez-nous	-
22	Y0097822		Rivet, Pop		Appelez-nous	-
23	31967401W		Wrapper, Storage Door (wht)		Appelez-nous	-
24	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
25	31733401		Roller, Drawer				$ 5.75
26	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
27	31733301		Track, Storage Drawer		Appelez-nous	-
28	Y0063661		Bumper, Oven Door		Appelez-nous	-
30	31937803C		Drawer Panel (bsq)		Appelez-nous	-
31	31942802B		Liner, Drawer Panel (blk)		Appelez-nous	-
NI	31947501		Insulation, Door		Appelez-nous	-
NI	31750016		Washer, Fiber (.188 Id/.500 Od		Appelez-nous	-
