SELECT A DIAGRAM
02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:

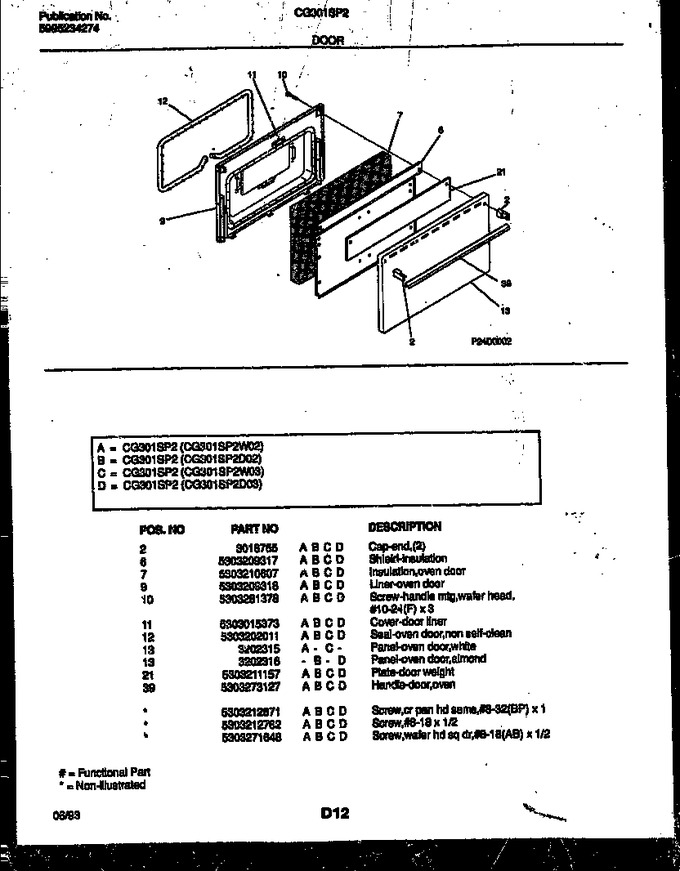

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3016755 | Cap, End (2) |
|
- | |||||
| 6 | 5303209317 | Shield-insulation |
|
- | |||||
| 7 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 9 | 5303209318 | Liner-oven Door |
|
- | |||||
| 10 | 5303281378 | Screw-handle Mtg, Wafer Head, 10-24(f) X 3 |
|
$ 13.60 | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| 12 | 5303202011 | Seal-oven Door, Non Self-clean |
|
$ 166.84 | |||||
| 13 | 3202316 | Panel,oven Door ,almond |
|
- | |||||
| 21 | 5303211157 | Plate, Door Weight |
|
- | |||||
| 39 | 5303273127 | Handle-door, Oven |
|
- | |||||
| *78484 | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2 |
|
Immediately | $ 13.46 | ||||
| *78484 | 5303212762 | Screw,8-18 X 1/2 |
|
- | |||||
| *78484 | 5303212671 | Screw, Cr Pan Hd Sems, 8, 32(bp) X 1 |
|
- |
