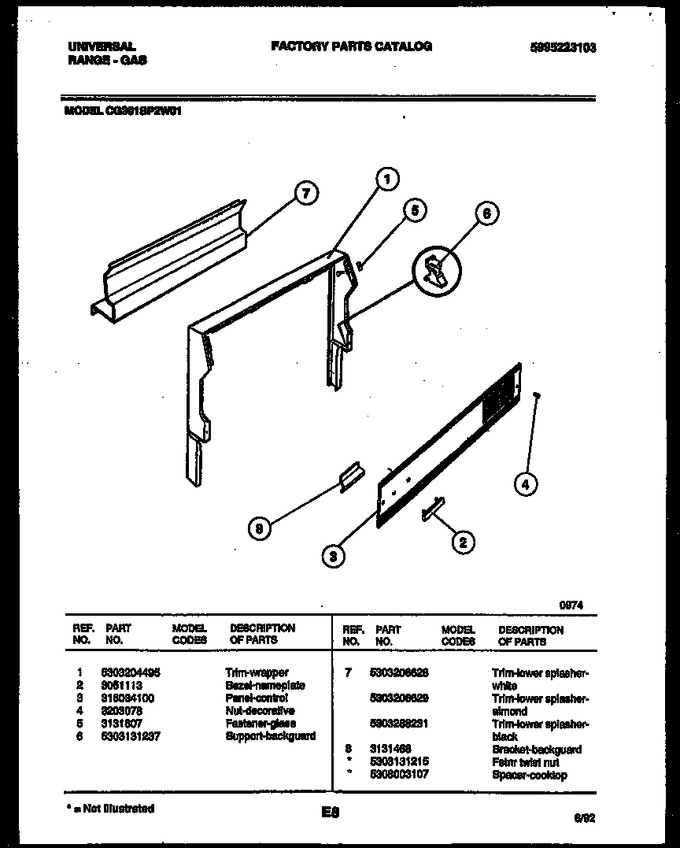

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303204495 | Trim-wrapper |
|
- | |||||
| 2 | 3051113 | Bezel, Nameplate |
|
- | |||||
| 3 | 316034100 | Panel-control |
|
- | |||||
| 4 | 3203078 | Nut-decorative |
|
- | |||||
| 5 | 3131607 | Fastener-glass |
|
- | |||||
| 6 | 5303131237 | Support, Backguard |
|
- | |||||
| 7 | 5303288231 | Trim-lower Splasher-black |
|
- | |||||
| 7 | 5303206628 | Trim-lower Splasher-white |
|
- | |||||
| 7 | 5303206629 | Trim-lower Splasher-almond |
|
- | |||||
| 8 | 3131468 | Bracket, Backguard |
|
- | |||||
| *58416 | 5308003107 | Spacer-cooktop |
|
- | |||||
| *58416 | 5303131215 | Fstnr-twist Nut |
|
- |
