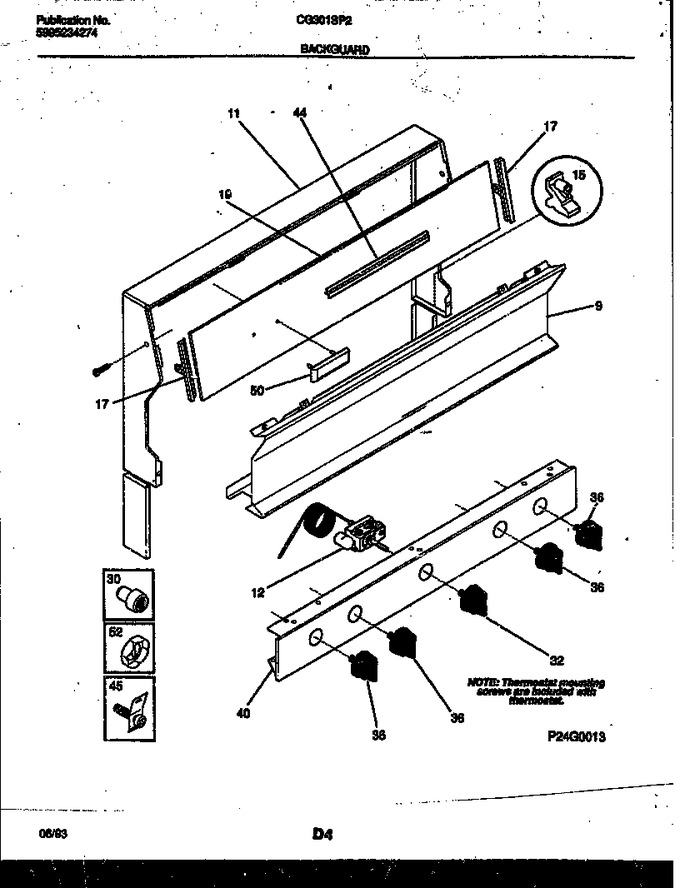

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316043601 | Trim-splasher, White |
|
- | |||||
| 11 | 5303204495 | Trim-wrapper, Black |
|
- | |||||
| 12 | 5303935004 | Thermostat-oven, W/ Screws |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 19 | 316034100 | Panel-control, Metal |
|
- | |||||
| 30 | 3203078 | Nut-decor Black |
|
- | |||||
| 32 | 5303288188 | Knob-thermostat |
|
- | |||||
| 36 | 5303288187 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 319009214 | Panel-manifold |
|
- | |||||
| 44 | 3131468 | Bracket, Backguard |
|
- | |||||
| 45 | 3131607 | Fastener-glass |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- |
