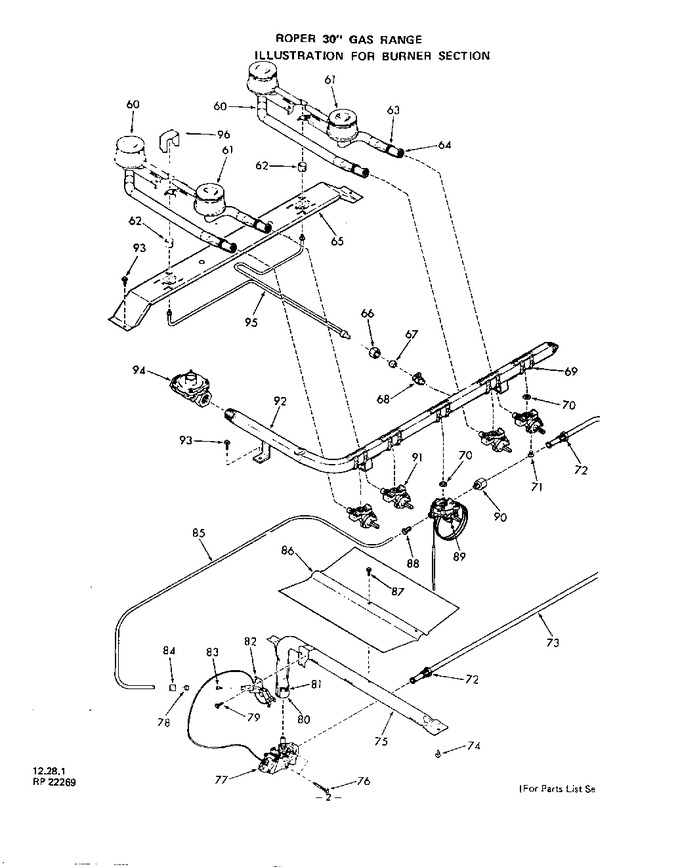

01 - Burner
02 - Section
03 - Body
04 - Oven Door
06 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 60 | 310197 | Top Burner-rear (inc. Keys 63 & 64) |
|
- | |||||
| 61 | 310196 | Top Burner-frt. (inc. Keys 63 & 64) |
|
- | |||||
| 62 | 308292 | Cup-top Pilot |
|
- | |||||
| 63 | 301911 | Screw |
|
- | |||||
| 64 | 301910 | Air Shutter |
|
- | |||||
| 65 | 308297 | Support-top Burners |
|
- | |||||
| 66 | 4825 | Compression Nut 1/4`` |
|
- | |||||
| 67 | 867 | Compression Ball Sleeve 1/4`` |
|
- | |||||
| 68 | 290610 | Filter-top Pilot |
|
- | |||||
| 69 | 288401 | Clip (10 Req) |
|
- | |||||
| 70 | 288186 | Gasket (5 Req. For Keys 89 & 91) |
|
- | |||||
| 71 | 299137 | Screw (10 Required) |
|
- | |||||
| 72 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 73 | 315808 | Tubing 3/8`` (thmst. To Cont. Valve) |
|
- | |||||
| 74 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 75 | 303398 | Burner-oven (inc. Keys 80,81 & 86) |
|
- | |||||
| 76 | 112365 | Screw 10-32x2`` |
|
- | |||||
| 77 | 294529 | Control Valve (inc. Keys 82 & 83) |
|
- | |||||
| 78 | 65711 | Compression Ball Sleeve 3/16`` |
|
$ 6.30 | |||||
| 79 | 288248 | Screw 10-24x1/4`` |
|
- | |||||
| 80 | 239267 | Air Shutter |
|
- | |||||
| 81 | 239268 | Screw |
|
- | |||||
| 82 | 294528 | Pilot-oven (inc. Key 83) |
|
- | |||||
| 83 | DD01-01019A | Orifice Cup (Replaces: 113117) |
|
$ 7.73 | |||||
| 84 | 65712 | Compression Nut 3/16`` |
|
- | |||||
| 85 | 308331 | Tubing 3/16`` (thermostat To Pilot) |
|
- | |||||
| 86 | 302729 | Baffle - Oven Burner |
|
- | |||||
| 87 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 88 | 79673 | Loxit Nut 3/16`` |
|
- | |||||
| 89 | 306533 | Thermostat-inc. Keys 70 & 90 |
|
$ 31.11 | |||||
| 90 | 303503 | Fitting |
|
- | |||||
| 91 | 314677 | Gas Valve (4 Required-inc`s. Key 70) |
|
- | |||||
| 92 | 308323 | Manifold Pipe |
|
- | |||||
| 93 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 94 | 298776 | Pressure Regulator |
|
- | |||||
| 95 | 315423 | Pilot Tube (inc. Keys 66 & 67) |
|
- | |||||
| 96 | 296183 | Shield-top Pilot (rt. Or Lt.) |
|
- |
