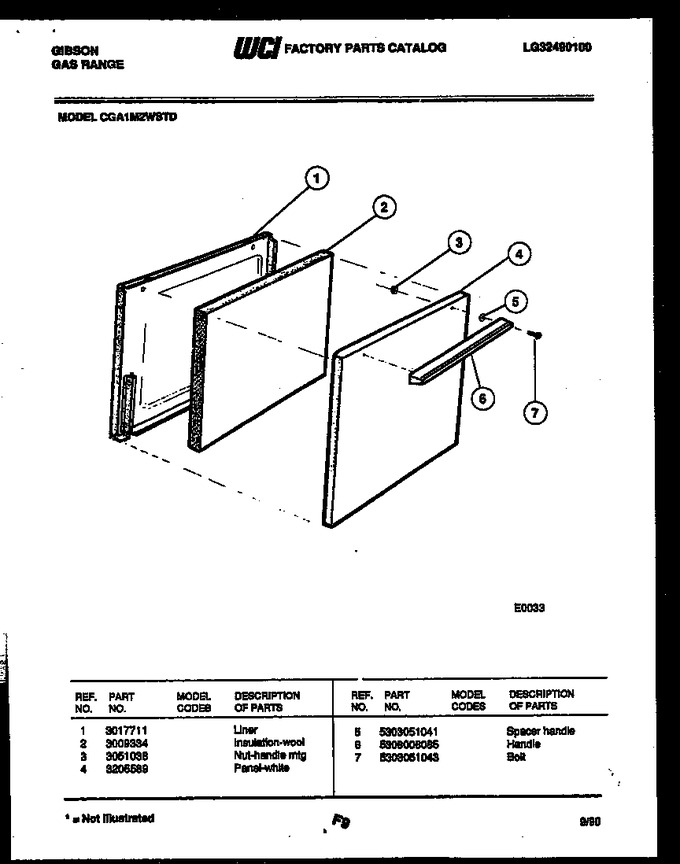

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017711 | Liner |
|
- | |||||
| 2 | 3009334 | Insulation-wool |
|
- | |||||
| 3 | 3051038 | Nut-handle Mtg |
|
- | |||||
| 4 | 3205589 | Panel, White |
|
- | |||||
| 5 | 5303051041 | Spacer Handle |
|
- | |||||
| 6 | 5308008085 | Handle |
|
- | |||||
| 7 | 5303051043 | Bolt |
|
- |
