SELECT A DIAGRAM

02 - Backguard And Main Top


03 - Burner


04 - Body


05 - Oven Door


06 - Rotisserie Kit, Griddle

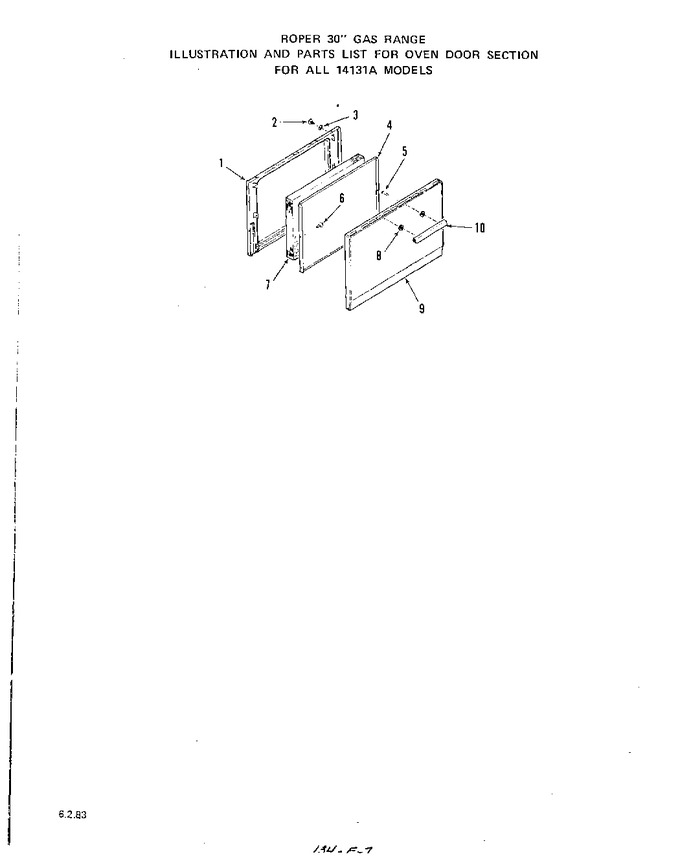

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318526		Lining-oven Door		Appelez-nous	-
2	102376		Screw 10-32 X 1/2``		Appelez-nous	-
3	21067		Washer		Appelez-nous	-
4	318463		Retainer-oven Door Insulation		Appelez-nous	-
5	316365		Screw 10-32x7/16``		Appelez-nous	-
6	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
7	296142		Insulation-oven Door		Appelez-nous	-
8	302343		Spacer-door Handle		Appelez-nous	-
9	308945		Golden Wheat		Appelez-nous	-
9	302075		White		Appelez-nous	-
9	308946		Almond		Appelez-nous	-
10	309871		Door Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
