New Model Search:

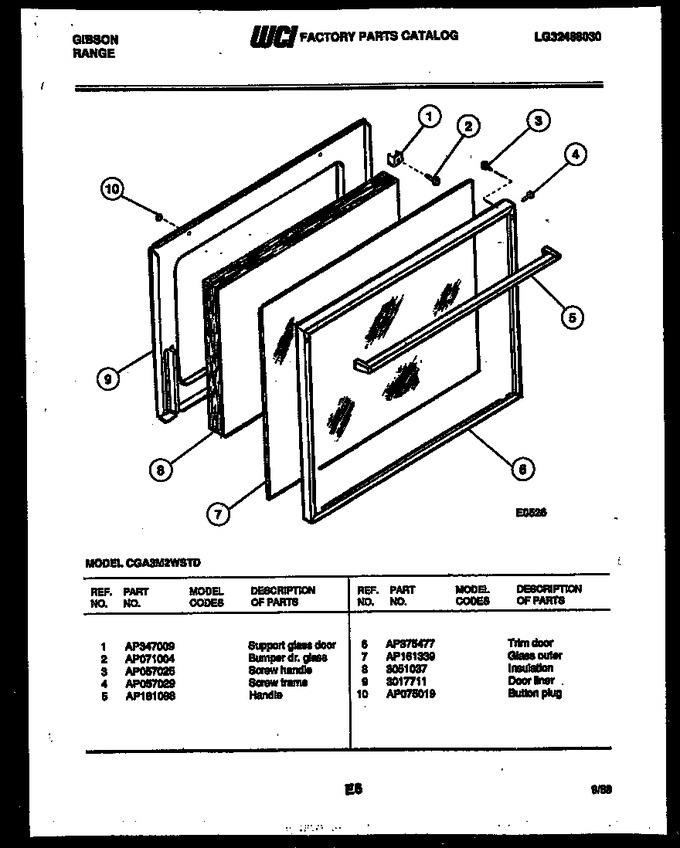

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AP347009 | Support Glass Door |
|
- | |||||
| 2 | AP071004 | Bumper Dr. Glass |
|
- | |||||
| 3 | AP057025 | Screw Handle |
|
- | |||||
| 4 | AP057029 | Screw Frame |
|
- | |||||
| 5 | AP181098 | Handle |
|
- | |||||
| 6 | AP375477 | Trim Door |
|
- | |||||
| 7 | AP161339 | Glass-outer |
|
- | |||||
| 8 | 3051037 | Insulation |
|
- | |||||
| 9 | 3017711 | Door Liner |
|
- | |||||
| 10 | AP075019 | Button-plug |
|
- |
