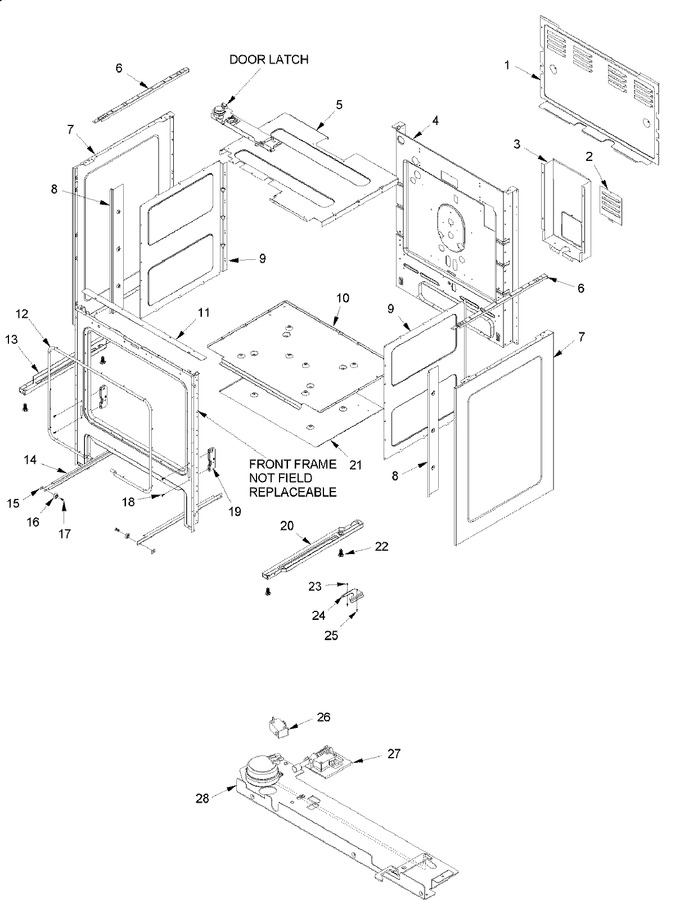

SELECT A DIAGRAM

01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	77001052		Cover, Lower Rear		Appelez-nous	-
2	31757201		Plate, Access		Appelez-nous	-
3	31955101		Raceway, Lower Wire		Appelez-nous	-
4	77001053		Rear Retainer (electric)		Appelez-nous	-
5	31936704		Retainer Insulation (top)		Appelez-nous	-
6	31943101		Brace, Top Chassis		Appelez-nous	-
7	32041004W		Panel, Side (wht)		Appelez-nous	-
8	32034001		Shield, Side Panel		Appelez-nous	-
9	31932101		Retainer Insulation (side)		Appelez-nous	-
10	77001055		Retainer, Bottom		Appelez-nous	-
11	32040801B		Bracket, Maintop (blk)		Appelez-nous	-
12	32057601		Gasket, Oven Door		Appelez-nous	-
13	31968501		Assy, Btm Brace/level Leg-lt		Appelez-nous	-
14	31733201		Track, Mounting		Appelez-nous	-
15	31750130		Nut, Lock (center) No.10-32 (zn)		Appelez-nous	-
16	31733401		Roller, Drawer				$ 5.75
17	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
18	31750530		Screw, 10-24x .500 Trhdwh(blk)		Appelez-nous	-
19	31946801		Receiver, Hinge		Appelez-nous	-
20	31968502		Assy, Btm Brace/level Leg-rt		Appelez-nous	-
21	32075901		Heat Shield, Drawer		Appelez-nous	-
22	31949001B		Leg, Plastic Leveling		Appelez-nous	-
23	31750412		Screw, No.8-18x5/8 P Rd Hd (blk)		Appelez-nous	-
24	31945201		Bracket, Anti Tip		Appelez-nous	-
25	Y0301555		Anchor, Plastic		Appelez-nous	-
26	32041201		Switch, Micro-class N		Appelez-nous	-
27	32041401		Switch, Plunger-class N		Appelez-nous	-
28	32040901		Auto Latch (electric)		Appelez-nous	-
NI	77001054		Limit Control		Appelez-nous	-
NI	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
NI	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
NI	Y0053584		Switch, Hi Limit		Appelez-nous	-
