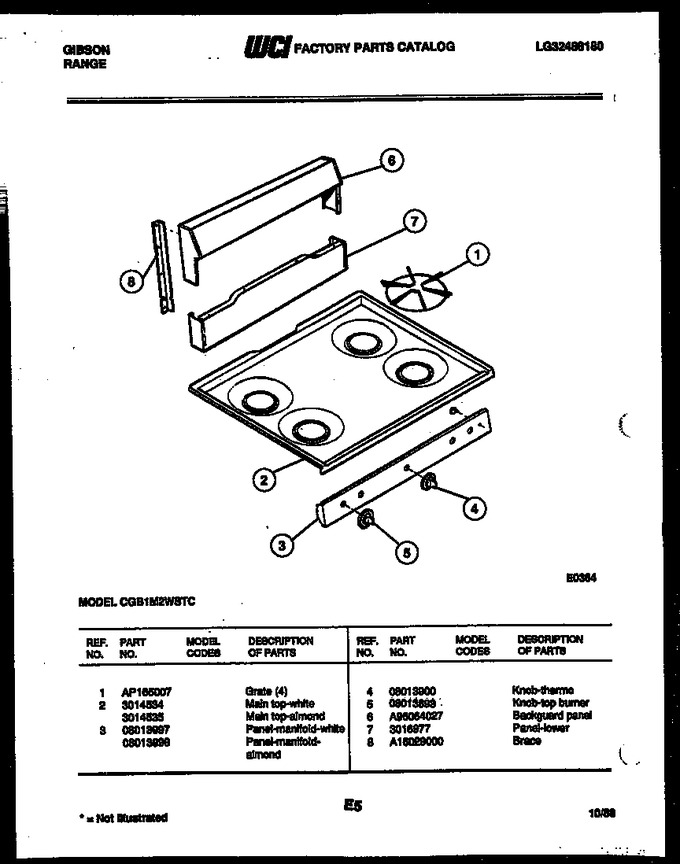

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | AP165007 | Grate (4) |
|
- | |||||
| 2 | 3014535 | Main Top Almond |
|
- | |||||
| 2 | 3014534 | Main Top White |
|
- | |||||
| 3 | 08013999 | Panel-manifold (almond) |
|
- | |||||
| 3 | 08013997 | Panel-manifold (white) |
|
- | |||||
| 4 | 08013900 | Knob-thermo |
|
- | |||||
| 5 | 08013893 | Knob-top Burner |
|
- | |||||
| 6 | A96064027 | Backguard Panel |
|
- | |||||
| 7 | 3016977 | Panel-lower |
|
- | |||||
| 8 | A16029000 | Brace |
|
- |
