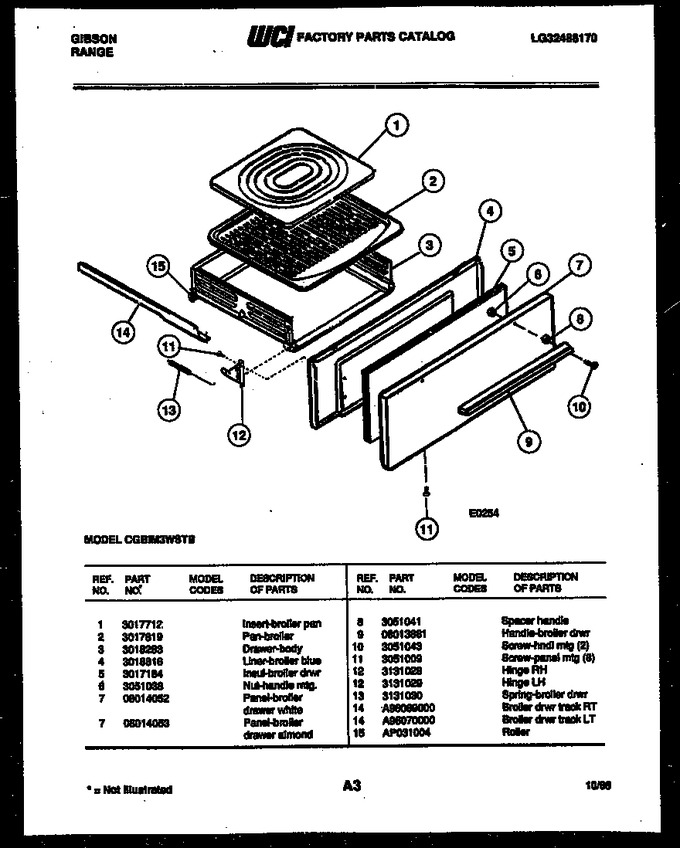

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Insert-broiler Pan		Appelez-nous	-
2	3017819		Pan - Broiler		Appelez-nous	-
3	3018283		Drawer Body		Appelez-nous	-
4	3018816		Liner-broiler Blue		Appelez-nous	-
5	3017184		Insul-broiler Drwr		Appelez-nous	-
6	3051038		Nut-handle Mtg		Appelez-nous	-
7	08014052		Panel Broiler Drawer White		Appelez-nous	-
7	08014053		Panel Broiler Drawer Almond		Appelez-nous	-
8	3051041		Spacer-handle		Appelez-nous	-
9	08013881		Handle-broiler Drwr		Appelez-nous	-
10	3051043		Screw-hndl Mtg (2)		Appelez-nous	-
11	3051009		Screw Panel Mtg (8)				$ 5.62
12	3131029		Hinge - Lh		Appelez-nous	-
12	3131028		Hinge - Rh		Appelez-nous	-
13	3131030		Spring-broiler Drw		Appelez-nous	-
14	A96070000		Broiler Drwr Track Lt		Appelez-nous	-
14	A96069000		Broiler Drwr Track Rt		Appelez-nous	-
15	AP031004		Roller		Appelez-nous	-
