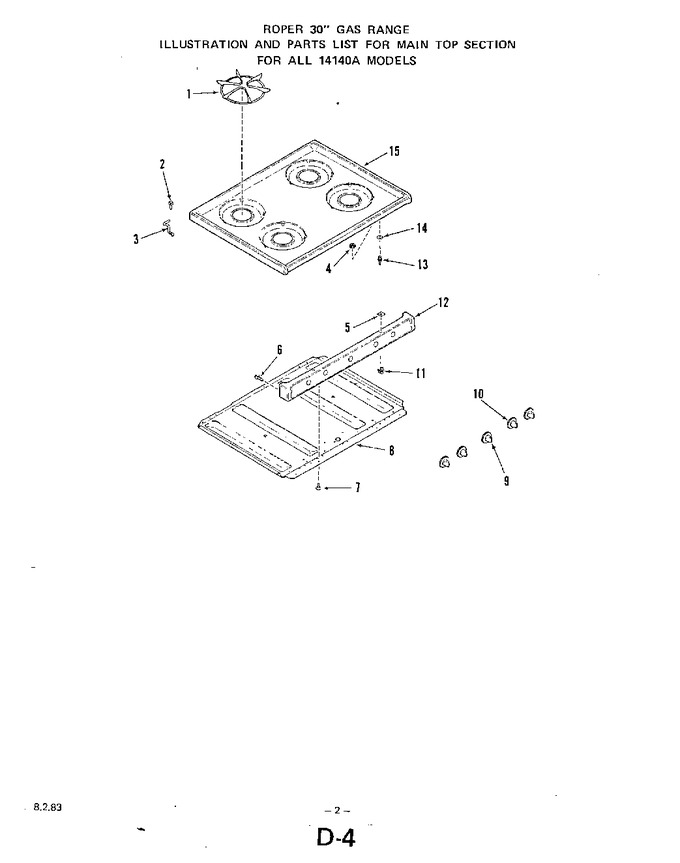

SELECT A DIAGRAM

02 - Backguard


03 - Main Top


04 - Burner


05 - Body


06 - Oven Door


07 - Rotisserie Kit, Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
2	316365		Screw 10-32x7/16``		Appelez-nous	-
3	323404		Right		Appelez-nous	-
3	323405		Left		Appelez-nous	-
4	239764		Hex Nut 8-32		Appelez-nous	-
5	310218		Washer		Appelez-nous	-
6	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
7	239113		Screw 10-32x3/8``		Appelez-nous	-
8	308300		Burner Box Bottom		Appelez-nous	-
9	320905		Knob-thermostat		Appelez-nous	-
10	320904		Knob-gas Valve (4 Req)		Appelez-nous	-
11	24667		Catch - Main Top Strike		Appelez-nous	-
12	324535		Almond		Appelez-nous	-
12	324534		Golden Wheat		Appelez-nous	-
12	324531		White		Appelez-nous	-
13	299784		Strike		Appelez-nous	-
14	99279		Washer		Appelez-nous	-
15	316814		Almond		Appelez-nous	-
15	316813		White		Appelez-nous	-
15	316815		Golden Wheat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
