01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer

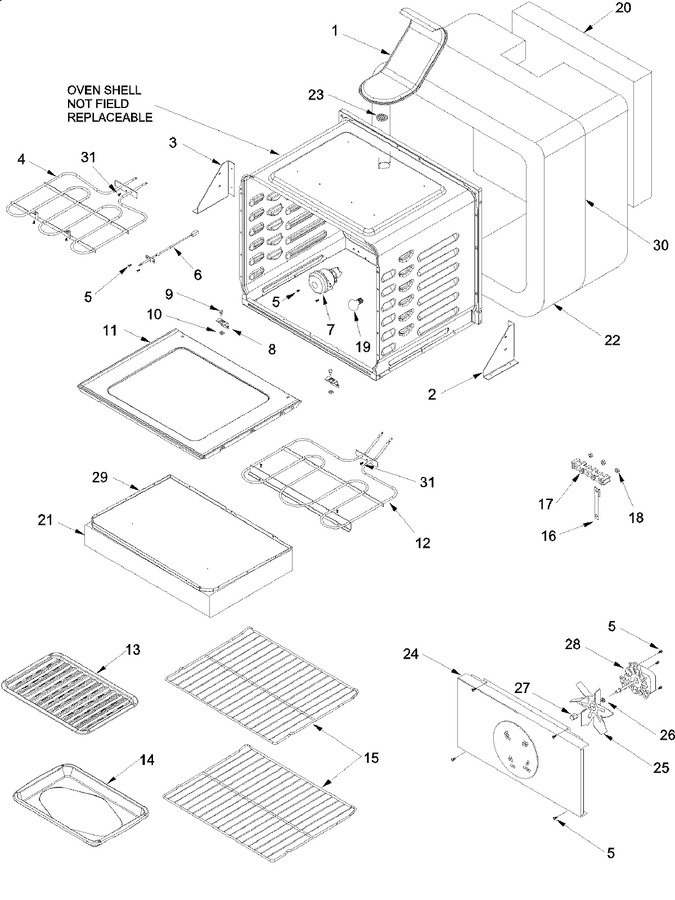

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	32037701		Tube, Vent		Appelez-nous	-
2	31937101		Gusset, Oven Support-rt		Appelez-nous	-
3	31937102		Gusset, Oven Support-lt		Appelez-nous	-
4	31967302		Element, Broil (3000 Watts)		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
6	31954301		Sensor, Temperture				$ 112.39
7	31823701		Oven Light Assy		Appelez-nous	-
8	31945401		Brkt, Support-oven Btm		Appelez-nous	-
9	31750723		Screw, Oven Bottom		Appelez-nous	-
10	31750129		Nut, Speed		Appelez-nous	-
11	31940806CG		Bottom, Oven (cg)		Appelez-nous	-
12	31967101		Element, Bake (240v-2800w)		Appelez-nous	-
13	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
14	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
15	32016003J		Rack, Oven-24.080`` X 16.436``		Appelez-nous	-
16	31967801		Ground Strap		Appelez-nous	-
17	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
18	31750124		Hex Nut (nkl)		Appelez-nous	-
19	Y0042175		Bulb, Light		Appelez-nous	-
20	31966301		Insulation, Back		Appelez-nous	-
21	32074801		Insulation, Bottom		Appelez-nous	-
22	31966201		Insulation, Wrapper		Appelez-nous	-
23	31999301		Smoke Eliminator		Appelez-nous	-
24	77001056		Plate, Convection		Appelez-nous	-
25	77001033		Blade, Fan 4 3/4`` D 1/4`` Hole		Appelez-nous	-
26	77001057		Washer, Convection Fan		Appelez-nous	-
27	77001058		Hex Cap Nut		Appelez-nous	-
28	77001059		Motor, Convection		Appelez-nous	-
29	77001061		Chamber, Bake (electric)		Appelez-nous	-
30	77001085		Wire, Insulation Retainer 139``		Appelez-nous	-
31	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
