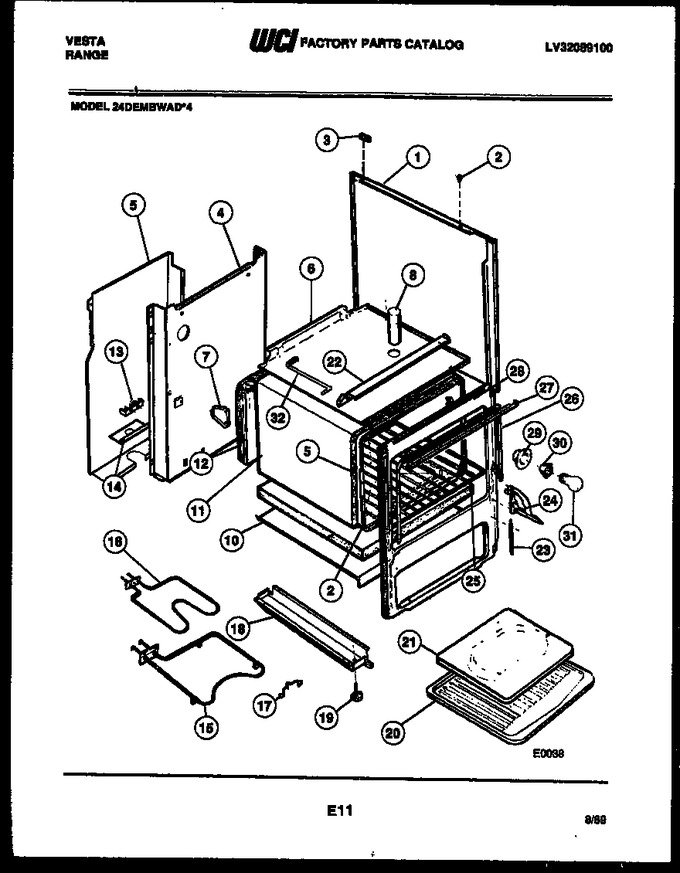

02 - Body Parts


03 - Drawer Parts


04 - Cooktop Parts


05 - Door Parts


06 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051061		Panel-side White (2)		Appelez-nous	-
2	08068054		Grommet (2)		Appelez-nous	-
3	3205587		Grommet (4)		Appelez-nous	-
4	3203613		Back-main		Appelez-nous	-
5	3203615		Cover-wire		Appelez-nous	-
6	3205692		Burner-box		Appelez-nous	-
7	3051096		Support,oven Rear		Appelez-nous	-
8	3051064		Tube Oven Vent		Appelez-nous	-
9	3016533		Liner-oven Rh		Appelez-nous	-
10	3016945		Panel-bottom		Appelez-nous	-
11	3016946		Insulation-wrap		Appelez-nous	-
12	3016947		Insulation-back		Appelez-nous	-
13	3051098		Block Terminal		Appelez-nous	-
14	3205588		Support-conduit		Appelez-nous	-
15	3009292		Element - Bake		Appelez-nous	-
16	3009293		Element-broil		Appelez-nous	-
17	3009445		Support-broil Element		Appelez-nous	-
18	08068047		Base Rail (2)		Appelez-nous	-
19	3051080		Leg Leveling (4)		Appelez-nous	-
20	3016973		Pan-broiler		Appelez-nous	-
21	3017712		Insert-broiler		Appelez-nous	-
22	3016951		Shield		Appelez-nous	-
23	3009435		Spring-door (2)		Appelez-nous	-
24	3204670		Hinge Assy Rh		Appelez-nous	-
25	3016128		Rack-oven (2)		Appelez-nous	-
26	3009426		Seal - Door		Appelez-nous	-
27	3016950		Support-control Panel		Appelez-nous	-
28	3203612		Frame-front		Appelez-nous	-
29	3051511		Cup, Oven Light				$ 60.22
30	3131807		Receptacle		Appelez-nous	-
31	AP00067016		Bulb		Appelez-nous	-
32	3205749		Rod - Top Support		Appelez-nous	-
*28948	3934059		Anti-tip Kit		Appelez-nous	-
24A	3204672		Hinge Assy Lh		Appelez-nous	-
9A	3017599		Liner-oven Lh		Appelez-nous	-
9B	3017600		Liner-oven Top		Appelez-nous	-
9C	3017597		Liner-oven Bottom		Appelez-nous	-
9D	3017724		Liner-back		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
