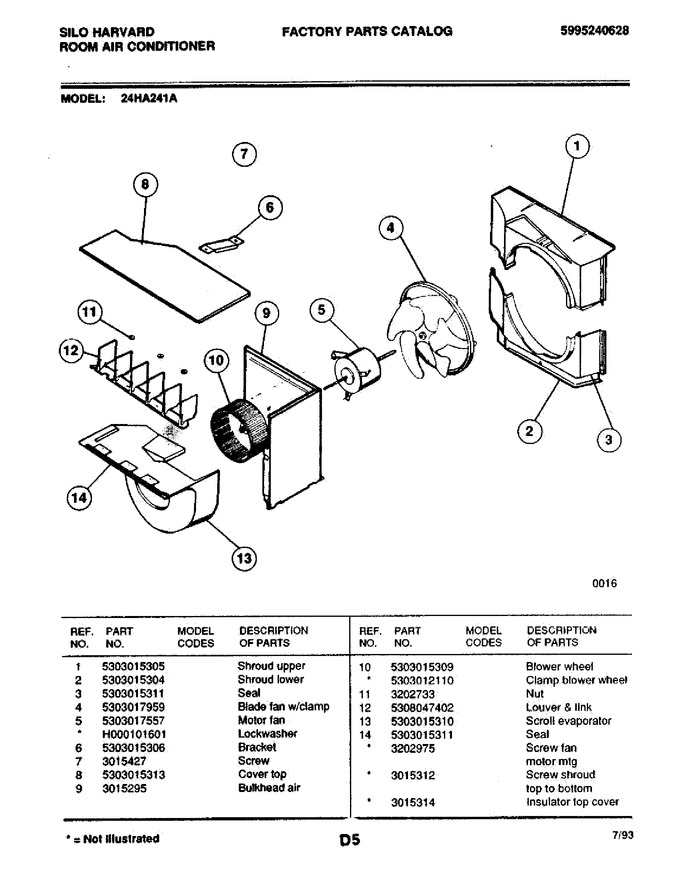

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303015305		Shroud - Upper		Appelez-nous	-
2	5303015304		Shroud - Lower		Appelez-nous	-
3	5303015311		Seal		Appelez-nous	-
4	5303017959		Blade Fan W/ Clamp		Appelez-nous	-
5	5303017557		Motor - Fan		Appelez-nous	-
6	5303015306		Bracket		Appelez-nous	-
7	3015427		Screw		Appelez-nous	-
8	5303015313		Cover - Top		Appelez-nous	-
9	3015295		Bulkhead - Air		Appelez-nous	-
10	5303015309		Wheel-blower		Appelez-nous	-
11	3202733		Nut		Appelez-nous	-
12	5308047402		Louver & Link		Appelez-nous	-
13	5303015310		Scroll-evaporator		Appelez-nous	-
14	5303015311		Seal		Appelez-nous	-
	H000101601		Lockwasher (non-illustrated)		Appelez-nous	-
	3015314		Insul-top Cover (non-illustrated)		Appelez-nous	-
	3015312		Scr-shroud Top To Bttm (non-illustrated)		Appelez-nous	-
	3202975		Screw-motor Fan (non-illustrated)		Appelez-nous	-
	5303012110		Clamp Blower Wheel (non-illustrated)				$ 8.14

    View Diagram in Separate Window       Print Part List
