01 - Base & Sensor
02 - Door & Controller
03 - Interior
04 - Latch Board
05 - Miscellaeous Information
06 - Oven Cavity
SELECT A DIAGRAM
New Model Search:

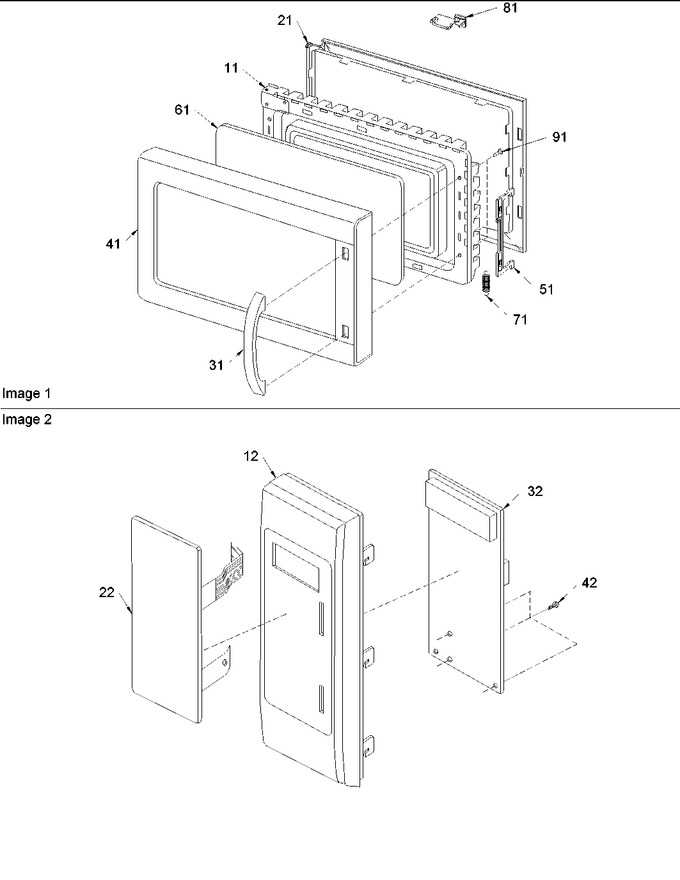

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0130658 | Frame, Door |
|
- | |||||
| 12 | R0131035 | Panel, Control (wht) |
|
- | |||||
| 21 | R0130659 | Cover, Choke |
|
- | |||||
| 22 | R0131458 | Membrane,key (wht) |
|
- | |||||
| 31 | R0131032 | Handle, Door (wht) |
|
- | |||||
| 32 | R0130666 | Control, Board |
|
$ 311.83 | |||||
| 41 | R0131033 | Panel, Door (wht) |
|
- | |||||
| 42 | R0131048 | Screw Tapping,pan Head |
|
- | |||||
| 51 | R9900260 | Latch, Door |
|
- | |||||
| 61 | R0131034 | Glass (wht) |
|
- | |||||
| 71 | R0130663 | Spring |
|
- | |||||
| 81 | R9900342 | Cap, Top Hinge |
|
- | |||||
| 91 | R0654180 | Screw, Pan Hd |
|
- |
