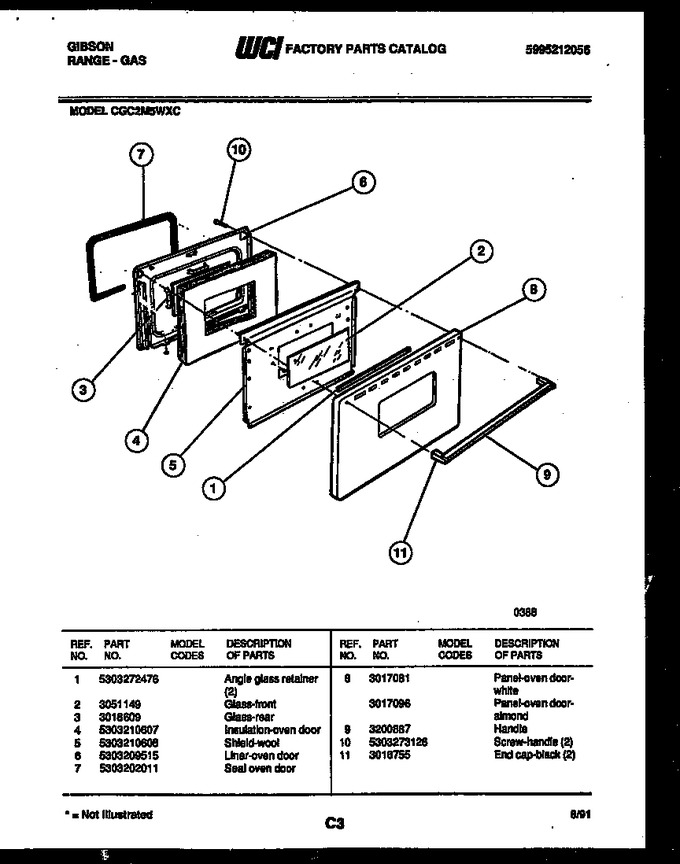

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303272476 | Angle Glass Retainer (2) |
|
- | |||||
| 2 | 3051149 | Glass - Front |
|
- | |||||
| 3 | 3018609 | Glass - Rear |
|
- | |||||
| 4 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 5 | 5303210608 | Shield-wool |
|
- | |||||
| 6 | 5303209515 | Liner-oven Door |
|
- | |||||
| 7 | 5303202011 | Seal-oven Door |
|
$ 166.84 | |||||
| 8 | 3017096 | Panel, Oven Door, Almond |
|
- | |||||
| 8 | 3017081 | Panel, Oven Door, White |
|
- | |||||
| 9 | 3200887 | Handle |
|
- | |||||
| 10 | 5303273126 | Screw - Handle (2) |
|
- | |||||
| 11 | 3016755 | End Cap, Black, (2) |
|
- |
