New Model Search:

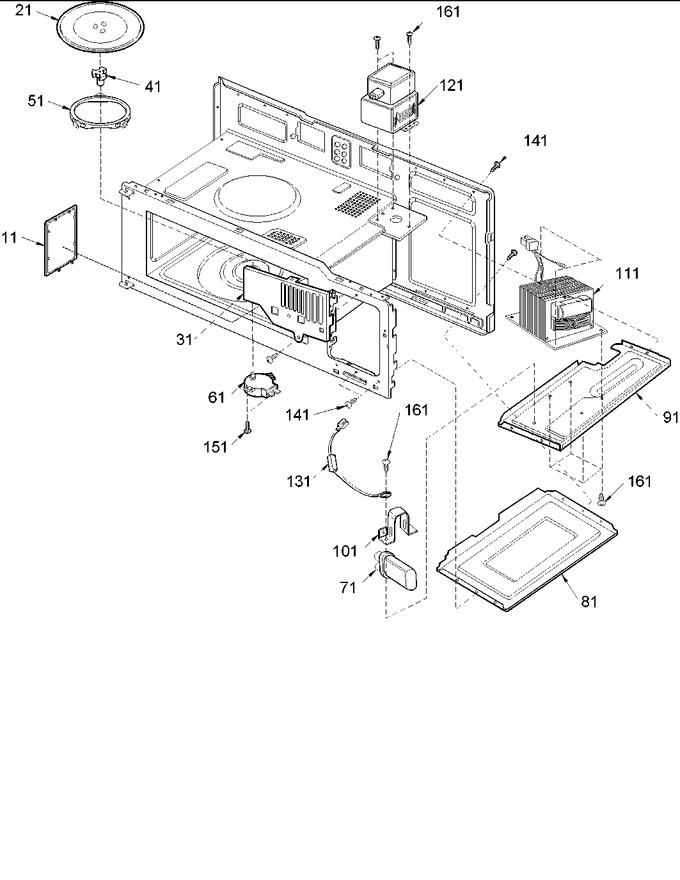

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | R0131492 | Canopy, Resin |
|
- | |||||
| 21 | WP8172138 | Tray, Glass (Replaces: R0131493) |
|
$ 87.23 | |||||
| 31 | R0131494 | Protector (mech) |
|
- | |||||
| 41 | R0130605 | Shaft, Turn Table |
|
$ 25.10 | |||||
| 51 | R9800453 | Assy, Rotating Ring |
|
- | |||||
| 61 | R0131496 | Motor, Antenna 120v 60hz |
|
- | |||||
| 71 | WP59001168 | Capacitor, H.v. (Replaces: R0131497) |
|
Immediately | $ 208.35 | ||||
| 81 | R0131498 | Plate, Bottom |
|
- | |||||
| 91 | R0131499 | Plate, Bottom |
|
- | |||||
| 101 | R9800436 | Bracket, Capacitor |
|
- | |||||
| 111 | R0131500 | Transformer, H.v. |
|
- | |||||
| 121 | R9900549 | Magnetron |
|
- | |||||
| 131 | WPR9800486 | Diode- Black Sleeve (Replaces: R9800486) |
|
$ 26.79 | |||||
| 141 | R0131246 | Screw, Tapping Truss Head |
|
- | |||||
| 151 | R0131244 | Screw Tapping,pan Head |
|
- |
