02 - Backguard

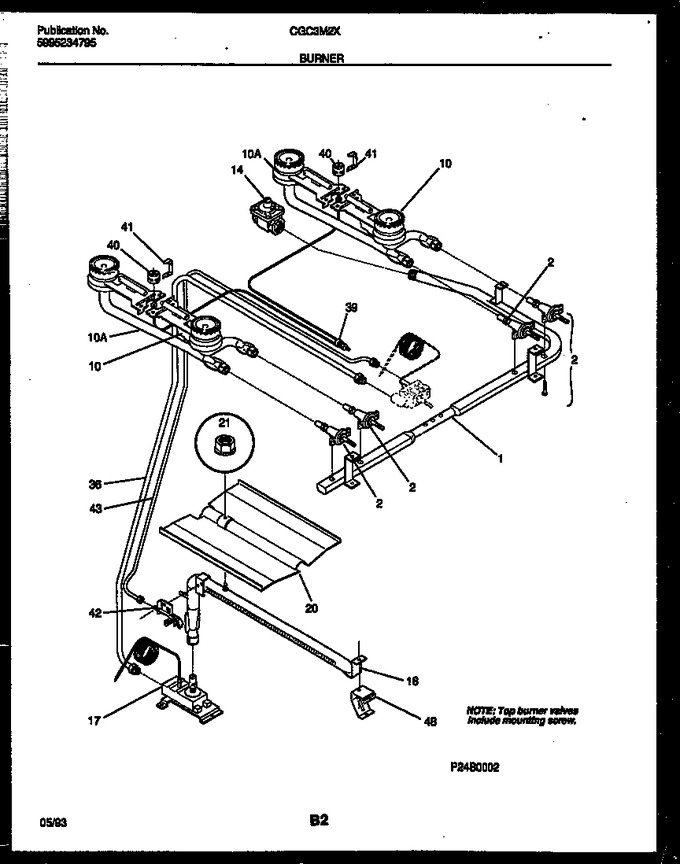

03 - Burner Parts
04 - Body Parts
05 - Cooktop And Broiler Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303280588 | Manifold-pipe |
|
- | |||||
| 2 | 316031700 | Valve-top Burner, 2 Position, (4), W/screws |
|
- | |||||
| 10 | 5304506427 | Burner-top, Front (Replaces: 316039002) |
|
$ 101.63 | |||||
| 14 | 5303016997 | Regulator-pressure |
|
- | |||||
| 17 | 5303280593 | Valve,safety |
|
$ 405.51 | |||||
| 18 | 5303280585 | Burner-oven |
|
- | |||||
| 20 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 36 | 5303280592 | Tubing-thermo/safety, 3/8, Alum |
|
- | |||||
| 39 | 5303211133 | Tubing-top Pilot, Dual |
|
$ 88.20 | |||||
| 40 | 5303211191 | Cap-top Pilot, (2) |
|
$ 35.75 | |||||
| 41 | 3202798 | Shield-pilot, Stainless Steel, (2) |
|
$ 55.18 | |||||
| 42 | 5303280589 | Pilot,oven |
|
$ 107.89 | |||||
| 43 | 3203398 | Tubing`thermo/pilot `3/16 ,alum |
|
- | |||||
| 48 | 3018603 | Bracket,support ,oven Burner |
|
- | |||||
| 10A | 5304506426 | Burner-top, Rear (Replaces: 316039003) |
|
$ 100.05 |
