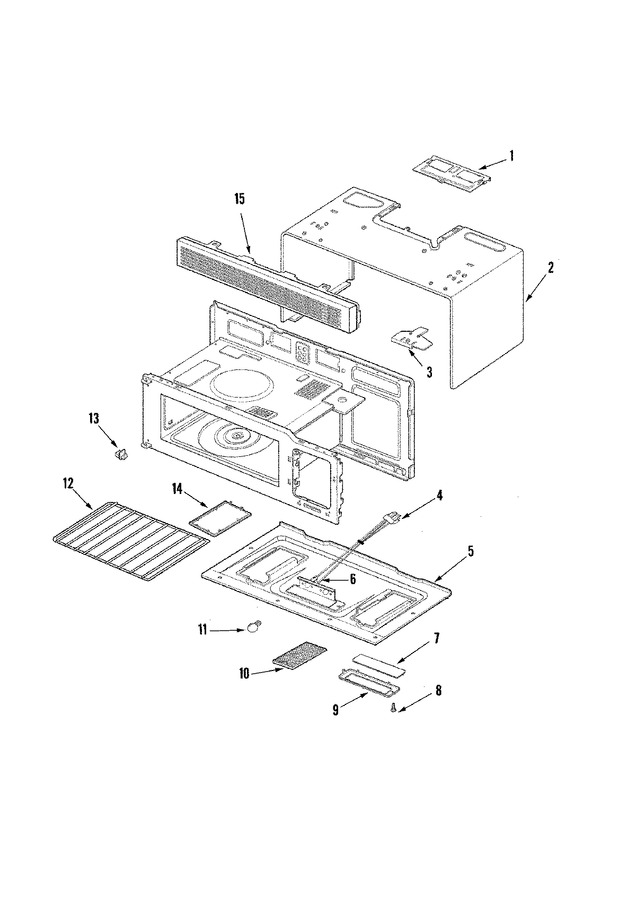

01 - Base & Cavity
02 - Control Panel
03 - Door
04 - Installation
05 - Internal Controls
06 - Supplemental Information
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | R0130606 | Mount, Plate | 10 |
|
- | ||||
| 1 | R0654183 | Screw, Truss Hd | 10 |
|
- | ||||
| 2 | R0131486 | Cabinet (blk) | 10 |
|
- | ||||
| 2 | R0654183 | Screw, Truss Hd | 10 |
|
- | ||||
| 3 | R9800364 | Bracket, Mounting | 10 |
|
- | ||||
| 3 | R9800359 | Screw, Tap Th | 10 |
|
- | ||||
| 4 | R0131489 | Connector Assy | 10 |
|
- | ||||
| 5 | R0654036 | Screw, Truss Hd S/tap | 10 |
|
- | ||||
| 5 | R0131490 | Plate, Base | 10 |
|
- | ||||
| 6 | R9800407 | Socket, Lamp | 10 |
|
- | ||||
| 7 | R9800395 | Lens, Glass | 10 |
|
- | ||||
| 8 | R0654036 | Screw, Truss Hd S/tap | 10 |
|
- | ||||
| 9 | R9800392 | Bracket, Lens | 10 |
|
- | ||||
| 10 | 4358853 | Filter, Grease (Replaces: R9800408) | 10 |
|
Immediately | $ 16.99 | |||
| 11 | WPA3073101 | Lamp (oven/baseless) (Replaces: R9900292) | 10 |
|
Immediately | $ 10.90 | |||
| 12 | 53001034 | Shelf, Wire | 10 |
|
- | ||||
| 13 | 53001033 | Support, Shelf | 10 |
|
- | ||||
| 14 | 53001029 | Canopy, Resin | 10 |
|
- | ||||
| 15 | R9800359 | Screw, Tap Th | 10 |
|
- | ||||
| 15 | 59001088 | Grille, Vent Grill (blk) | 10 |
|
- |
