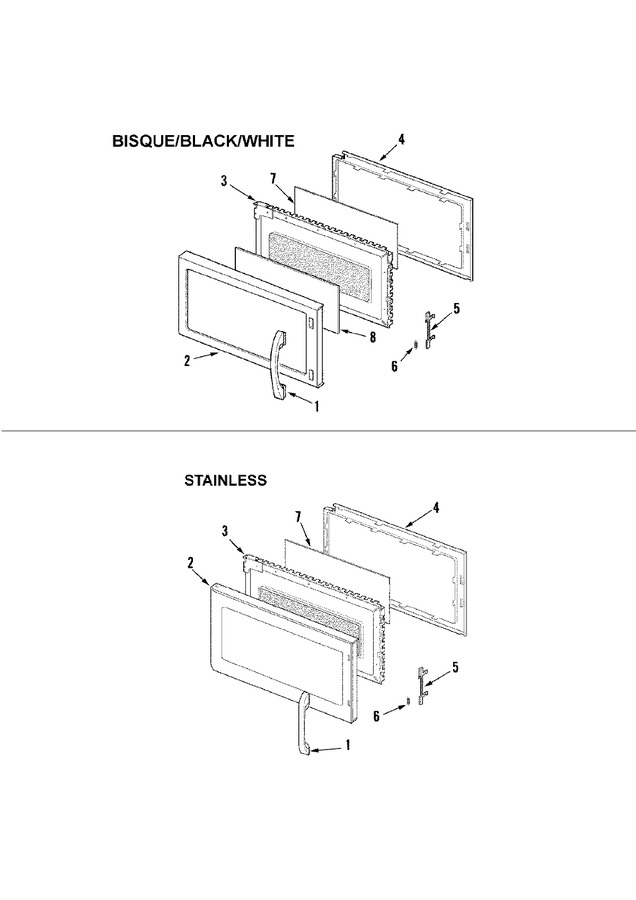

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 59001089 | Handle, Door (bsq) | 10 |
|
- | ||||
| 2 | 59001090 | Panel, Door (bsq) | 10 |
|
- | ||||
| 3 | R9900240 | Frame, Door | 10 |
|
- | ||||
| 4 | R9900246 | Cover, Choke | 10 |
|
- | ||||
| 5 | R9900260 | Latch, Door | 10 |
|
- | ||||
| 6 | R0131481 | Spring, Latch | 10 |
|
- | ||||
| 7 | WPW10146437 | Tape, Seal (Replaces: R9900242) | 10 |
|
$ 79.74 | ||||
| 8 | 59001093 | Glass, Door (bsq) | 10 |
|
- | ||||
| NI | 53001037 | Baffle, Door | 10 |
|
- |
