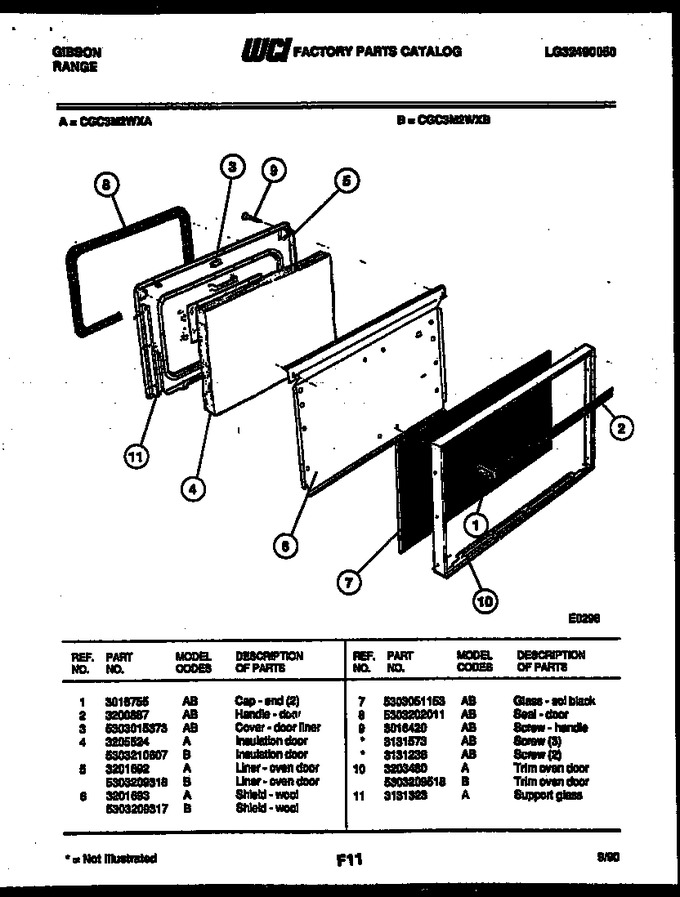

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3016755 | Cap, End (2) |
|
- | |||||
| 2 | 3200887 | Handle, Door |
|
- | |||||
| 3 | 5303015373 | Cover-door Liner |
|
- | |||||
| 4 | 3205524 | Insulation, Door |
|
- | |||||
| 5 | 3201692 | Liner, Oven Door |
|
- | |||||
| 6 | 3201693 | Shield, Wool |
|
- | |||||
| 6 | 5303209317 | Shield-wool |
|
- | |||||
| 7 | 5303051153 | Glass-sol Black |
|
- | |||||
| 8 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 9 | 3016420 | Screw, Handle |
|
- | |||||
| 10 | 3203480 | Trim, Oven Door |
|
- | |||||
| 11 | 3131323 | Support, Glass |
|
- | |||||
| 9A | 3131573 | Screw (3) (non-illustrated) |
|
- | |||||
| 9B | 3131236 | Screw (2) (non-illustrated) |
|
- |
