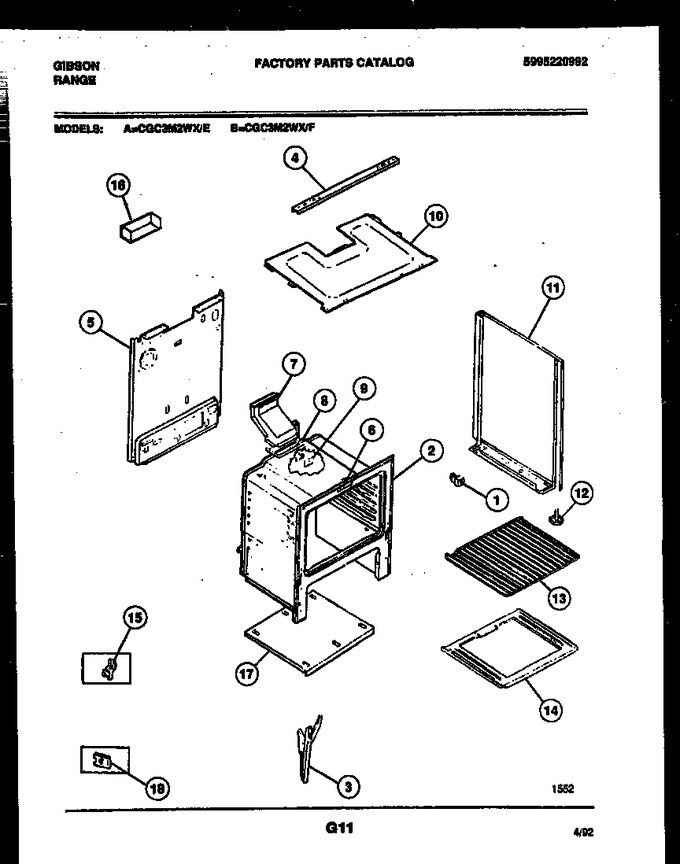

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Body Parts
07 - Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 3 | 316007001 | Channel-door Hinge |
|
$ 234.55 | |||||
| 4 | 3203394 | Channel - Burn. Supt. |
|
- | |||||
| 5 | 3203082 | Back-main |
|
- | |||||
| 6 | 5303015372 | Cover, Front Main |
|
- | |||||
| 7 | 3131909 | Flue |
|
- | |||||
| 8 | 08067965 | Gasket-flue |
|
- | |||||
| 9 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 10 | 3204962 | Burner Box |
|
- | |||||
| 11 | 5303269518 | Pnl-b/s-rh-white |
|
- | |||||
| 11 | 5303269543 | Panel-bodyside Rh (almond) |
|
- | |||||
| 12 | 5303203397 | Screw, Leveler (4) |
|
$ 14.49 | |||||
| 13 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 14 | 5303212540 | Bottom, Oven |
|
- | |||||
| 15 | 5303280586 | Clip - Thermo Bulb |
|
- | |||||
| 16 | 3131191 | Cover, Flue |
|
- | |||||
| 17 | 5303270160 | Base-broil |
|
- | |||||
| 18 | 3203010 | Fastener (Replaces: 5303012323) |
|
$ 14.89 | |||||
| *50253 | 3934056 | Anti-tip Bracket |
|
- | |||||
| *50253 | 08010570 | Fastener, Leveling Leg Tee Nut |
|
- | |||||
| *50253 | 3051218 | Plate,oven Light |
|
- | |||||
| *50254 | 3202799 | Shield, Flue |
|
- | |||||
| 11A | 5303269545 | Panel Bodyside Lh (almond) |
|
- | |||||
| 11A | 5303269519 | Pnl-b/s-lh-white |
|
- | |||||
| 14A | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 14B | 3017142 | Insulation, Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 16A | 3014226 | Support - Oven Bttm (non-illustrated) |
|
- |
