SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Body Parts
07 - Burner Parts
SELECT A DIAGRAM
New Model Search:

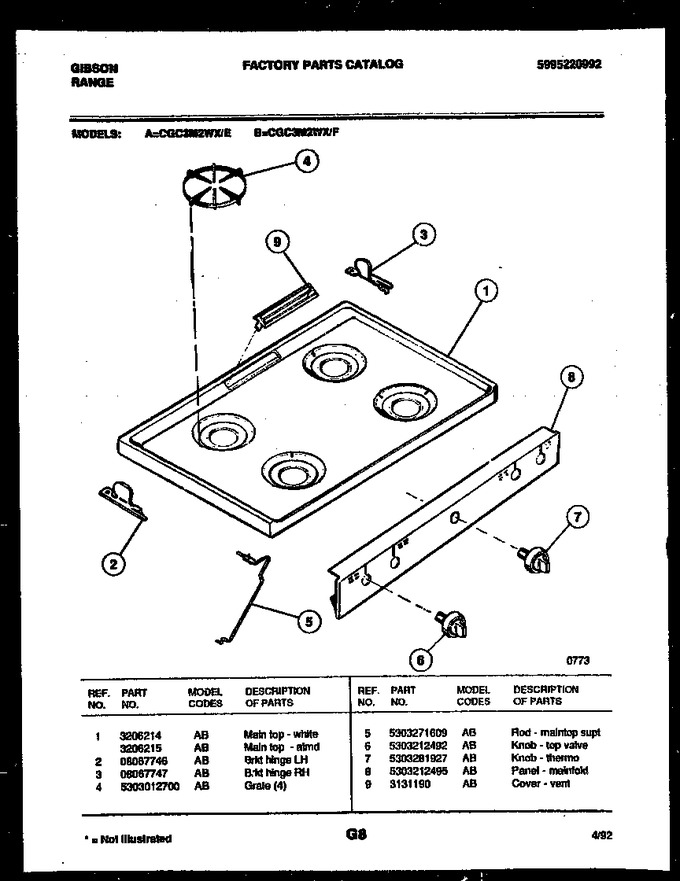

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206215 | Main Top-almd |
|
- | |||||
| 1 | 3206214 | Main Top - White |
|
- | |||||
| 2 | 08067746 | Brkt Hinge-lh |
|
- | |||||
| 3 | 08067747 | Brkt Hinge-rh |
|
- | |||||
| 4 | 5303012700 | Grate (4) |
|
- | |||||
| 5 | 5303271609 | Rod - Maintop Supt |
|
- | |||||
| 6 | 5303212492 | Knob-top Valve |
|
- | |||||
| 7 | 5303281927 | Knob - Thermo |
|
- | |||||
| 8 | 5303212495 | Panel - Mainfold |
|
- | |||||
| 9 | 3131190 | Cover-vent |
|
- |
