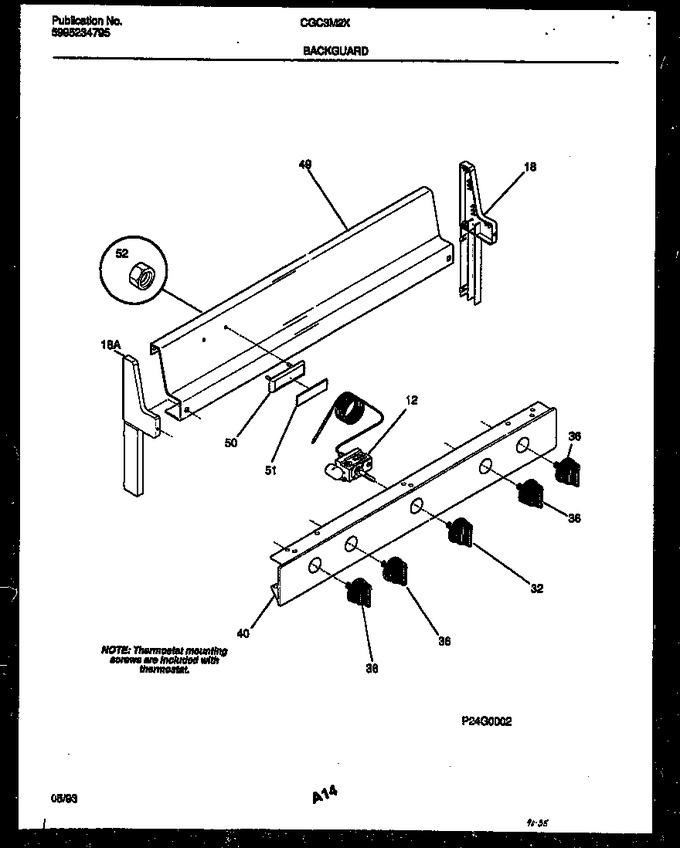

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5303935004 | Thermostat-oven, W/ Screws |
|
- | |||||
| 18 | 3202802 | Cap-end, Black, Rh |
|
- | |||||
| 32 | 5303281927 | Knob-thermostat |
|
- | |||||
| 36 | 5303212492 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303210631 | Panel-manifold |
|
- | |||||
| 49 | 3051199 | Panel-backguard, White |
|
- | |||||
| 50 | 316052100 | Bezel-nameplate |
|
- | |||||
| 51 | 5303212494 | Nameplate |
|
- | |||||
| 52 | 5303131215 | Nut, Twist |
|
- | |||||
| 18A | 3202801 | Cap-end, Black, Lh |
|
- |
