02 - Backguard And Cooktop Parts


03 - Broiler Drawer Parts


04 - Burner Parts


05 - Body Parts


06 - Door Parts

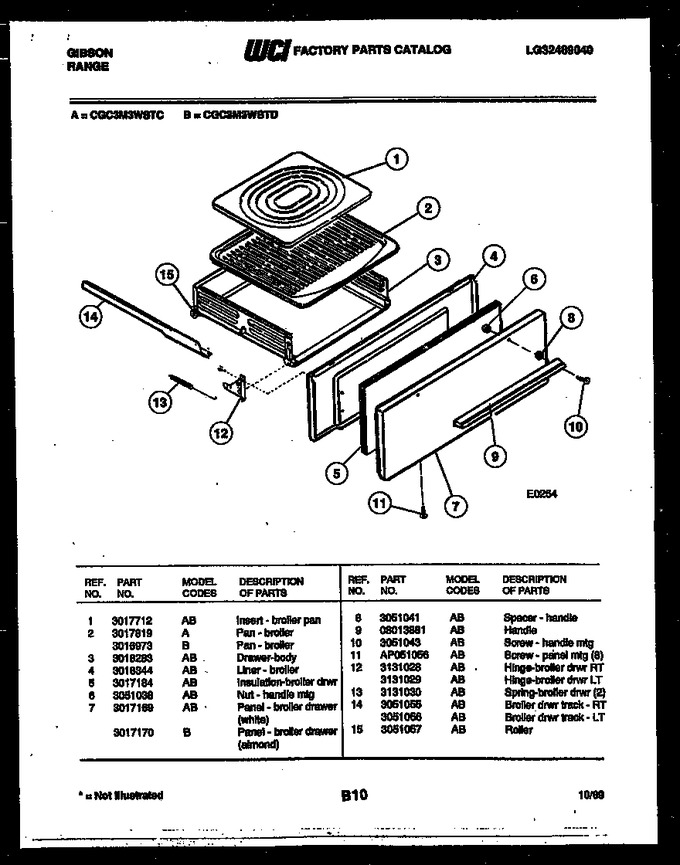

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3017712		Insert-broiler Pan		Appelez-nous	-
2	3017819		Pan - Broiler		Appelez-nous	-
3	3018283		Drawer Body		Appelez-nous	-
4	3018344		Liner Broiler		Appelez-nous	-
5	3017184		Insulation-broiler Drwr		Appelez-nous	-
6	3051038		Nut-handle Mtg		Appelez-nous	-
7	3017169		Panel-broiler Drawer White		Appelez-nous	-
8	3051041		Spacer-handle		Appelez-nous	-
9	08013881		Handle		Appelez-nous	-
10	3051043		Screw Handle Mtg		Appelez-nous	-
11	AP051056		Screw Panel Mtg. (8)		Appelez-nous	-
12	3131028		Hinge-broiler Drwr Rt		Appelez-nous	-
13	3131030		Spring-broiler Drwr (2)		Appelez-nous	-
14	3051055		Broiler Drwr Track - Rt		Appelez-nous	-
15	3051057		Roller		Appelez-nous	-
12A	3131029		Hinge-broiler Drwr Lt		Appelez-nous	-
14A	3051056		Broiler Drwr Track - Lt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
