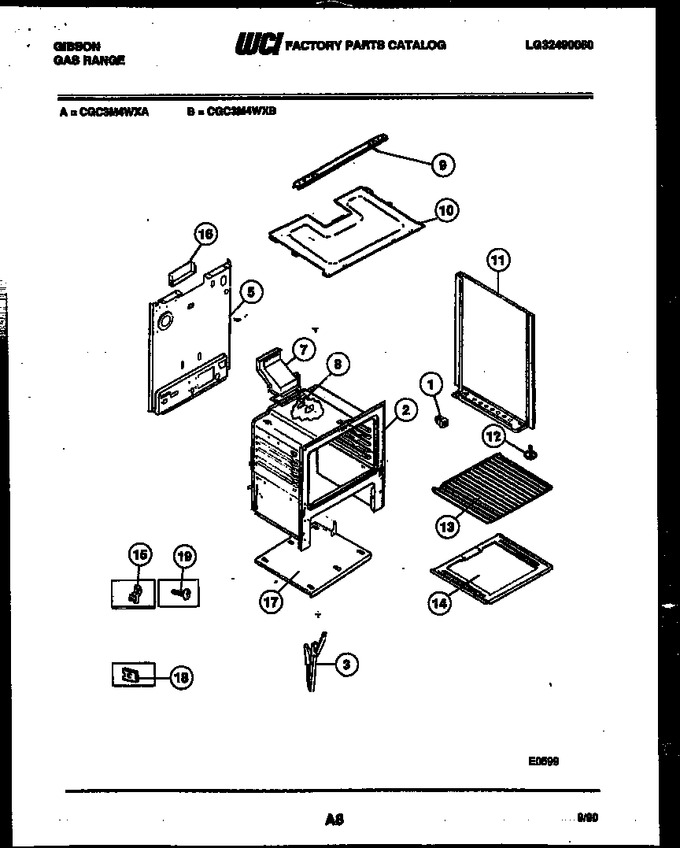

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3014099 | Spacer,bodyside |
|
$ 3.62 | |||||
| 3 | 5303131569 | Channel, Dr Hinge (2) |
|
- | |||||
| 5 | 3203082 | Back-main |
|
- | |||||
| 7 | 3131909 | Flue |
|
- | |||||
| 8 | 08067965 | Gasket-flue |
|
- | |||||
| 9 | 3203394 | Channel-burner Sprt |
|
- | |||||
| 10 | 3204962 | Burner Box |
|
- | |||||
| 11 | 3205624 | Panel Bodyside-rh-almond |
|
- | |||||
| 11 | 3205623 | Panel Bodyside-rh-white |
|
- | |||||
| 12 | 5303203397 | Screw, Leveling (4) |
|
$ 14.49 | |||||
| 13 | 5303131973 | Rack |
|
- | |||||
| 14 | 5303212540 | Bottom, Oven |
|
- | |||||
| 15 | 5303011805 | Clip, Thermo Bulb |
|
- | |||||
| 16 | 3131191 | Cover, Flue |
|
- | |||||
| 17 | 3131180 | Base, Broil |
|
- | |||||
| 18 | 3203010 | Fastener - 8 ``u`` Type (2) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 19 | 316282700 | Screw, Oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| *23765 | 3934056 | Anti-tip Bracket |
|
- | |||||
| *23765 | 3202799 | Shield, Flue |
|
- | |||||
| *23765 | 3051218 | Plate,oven Light |
|
- | |||||
| *23765 | 5303015372 | Cover, Front Main |
|
- | |||||
| *23765 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 11A | 3205621 | Panel Bodyside-lh-almond |
|
- | |||||
| 11A | 3205620 | Panel Bodyside-lh-white |
|
- | |||||
| 14A | 3017142 | Insulation, Oven Wrap (non-illustrated) |
|
$ 193.50 | |||||
| 14B | 3203541 | Insulation, Back (non-illustrated) |
|
- | |||||
| 16A | 3014226 | Support (non-illustrated) |
|
- |
