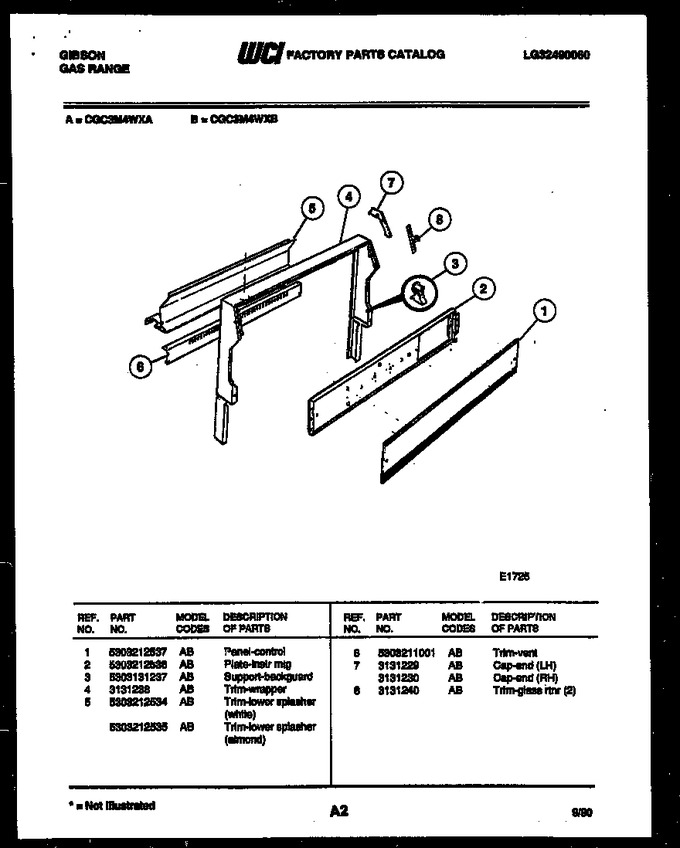

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212537 | Panel-control |
|
- | |||||
| 2 | 5303212536 | Plate - Instr Mtg |
|
- | |||||
| 3 | 5303131237 | Support, Backguard |
|
- | |||||
| 4 | 3131238 | Trim, Wrapper |
|
- | |||||
| 5 | 5303212535 | Trim-lower Splasher (almond) |
|
- | |||||
| 5 | 5303212534 | Trim - Lower Splasher (white) |
|
- | |||||
| 6 | 5303211001 | Trim-vent |
|
- | |||||
| 7 | 3131229 | Cap, End (lh) |
|
- | |||||
| 8 | 3131240 | Trim-glass Rtnr (2) |
|
- | |||||
| 7A | 3131230 | Cap, End (rh) |
|
- |
