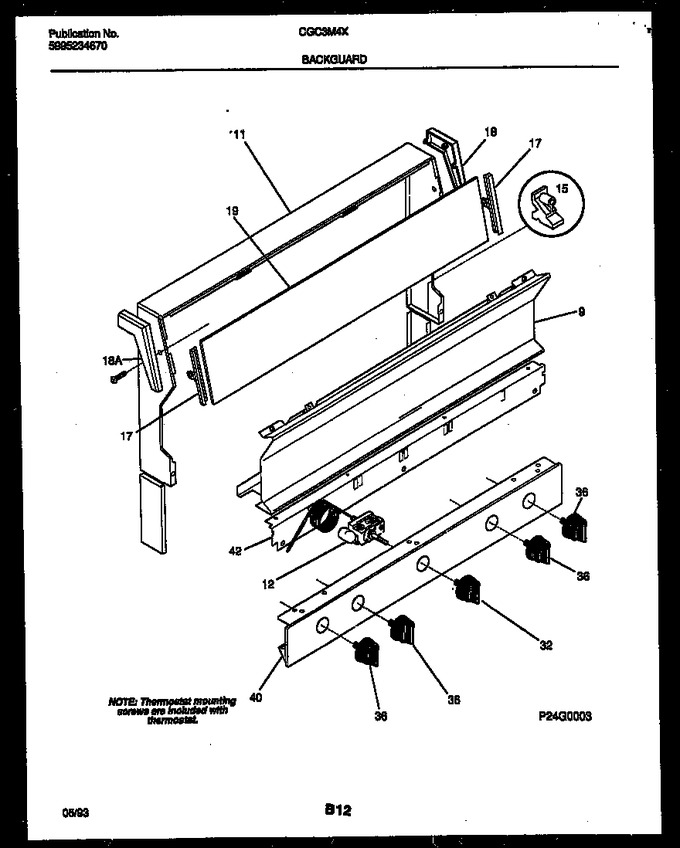

02 - Backguard
03 - Burner Parts
04 - Body Parts
05 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 316012501 | Trim-splasher, White |
|
- | |||||
| 11 | 3131238 | Trim, Wrapper |
|
- | |||||
| 12 | 5303935004 | Thermostat-oven, W/ Screws |
|
- | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131230 | Cap, End (rh) |
|
- | |||||
| 19 | 5303212537 | Panel-control, Glass |
|
- | |||||
| 32 | 5303281927 | Knob-thermostat |
|
- | |||||
| 36 | 5303212492 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 5303210631 | Panel-manifold |
|
- | |||||
| 42 | 5303211001 | Trim-vent |
|
- | |||||
| 18A | 3131229 | Cap, End (lh) |
|
- |
