02 - Backguard
03 - Cooktop

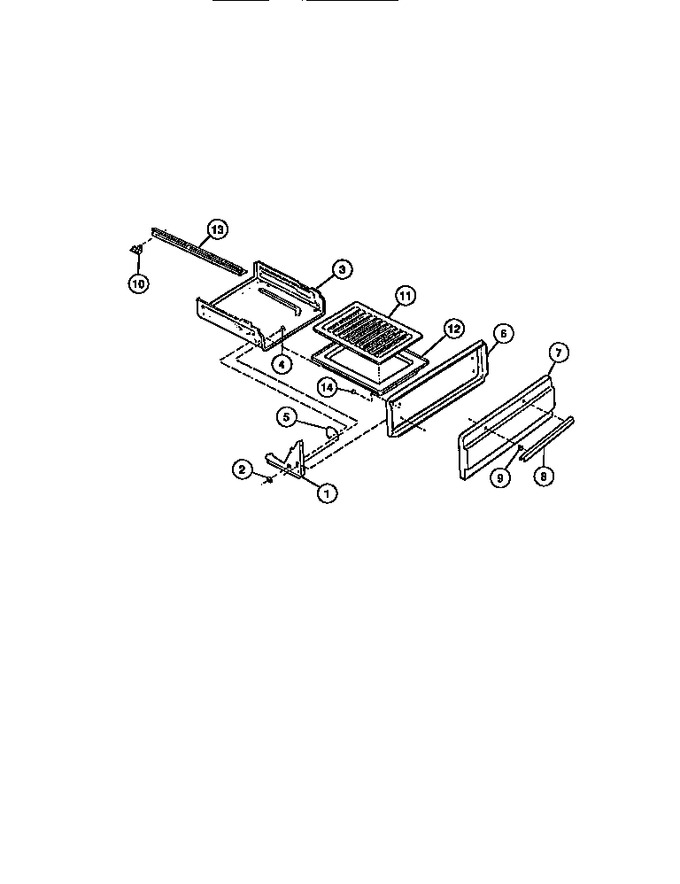

04 - Broiler Drawer
05 - Oven Door
06 - Burners
07 - Body
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200673 | Bracket-broiler Hinge (left Hand) |
|
- | |||||
| 2 | 3131386 | Fastener, Push Nut |
|
- | |||||
| 3 | 3018608 | Body, Broiler |
|
- | |||||
| 4 | 3018614 | Pin-hinge |
|
- | |||||
| 5 | 3018618 | Spring-broiler (left Hand C Type) |
|
- | |||||
| 6 | 3202803 | Liner, Broiler Drawer |
|
- | |||||
| 7 | 3131134 | Panel-broiler-almond |
|
- | |||||
| 8 | 3131125 | Handle |
|
- | |||||
| 9 | 3131387 | Fastener-nylon Spacer (2) |
|
- | |||||
| 10 | 3018610 | Glide-broiler |
|
$ 29.40 | |||||
| 11 | 5303131356 | Insert-broiler Pan |
|
- | |||||
| 12 | 5303013568 | Pan-broiler |
|
- | |||||
| 13 | 3131153 | Channel-broiler |
|
- | |||||
| *46560 | 3206216 | Button Glide |
|
- | |||||
| 12A | 5303131258 | Insulation, Broiler Drawer (non-illustrated) |
|
- | |||||
| 12B | 5303051818 | Screw (7) (non-illustrated) |
|
- | |||||
| 12C | 3013964 | Screw (2) (non-illustrated) |
|
- | |||||
| 1A | 3018860 | Bracket-broiler Hinge (right Hand) |
|
- | |||||
| 5A | 3018619 | Spring-broiler (right Hand C Type) |
|
- |
