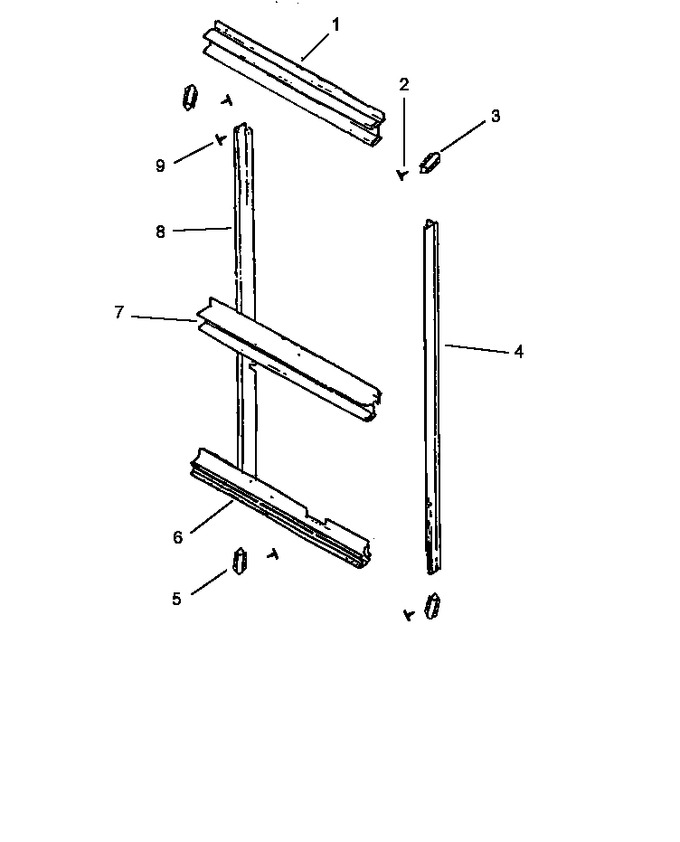

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 308160K | Trim, Control Panel-bot (k) |
|
- | |||||
| 2 | Y0309204 | Screw, No.6-32x3/8-blk |
|
- | |||||
| 3 | 307887K | Trim, Corner-rt (k) |
|
- | |||||
| 4 | 308157K | Trim, Side Rt (k) |
|
- | |||||
| 5 | 307888K | Trim, Corner-lt (k) |
|
- | |||||
| 6 | 307720K | Trim, Bottom (k) |
|
- | |||||
| 7 | 308154K | Trim, Center Upper (k) |
|
- | |||||
| 7 | 308155K | Trim, Center Lower (k) |
|
- | |||||
| 8 | 308156K | Trim, Side Lt (k) |
|
- | |||||
| 9 | Y0041807 | Screw No.8abx1/4 Ph Hd |
|
- | |||||
| NI | Y0307205 | Brkt, Trim Corner |
|
- |
