01 - Cabinet


02 - Cabinet Trim

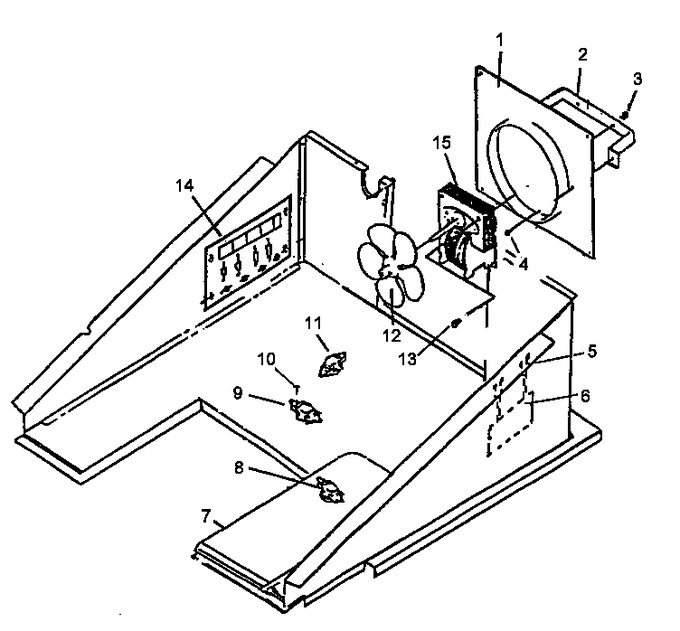

03 - Control Compartment


04 - Control Panel


05 - Door Latch


06 - Oven Accessories


07 - Oven Door, Frameless


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	Y0305242		Bracket-motor Mount		Appelez-nous	-
3	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
4	Y0305243		Grommet-fan		Appelez-nous	-
6	Y0314523		Relay, Module		Appelez-nous	-
7	306384B		Box, Upper Oven Flue		Appelez-nous	-
8	Y0042066		Limit Switch-open 90		Appelez-nous	-
9	Y0042045		Limit Control-upper Oven-200		Appelez-nous	-
10	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
11	Y0042056		Switch Fan Spdt		Appelez-nous	-
12	Y0314548		Blade, Fan		Appelez-nous	-
13	31750301		Screw No.6-32 X 1.00 Plain		Appelez-nous	-
13	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
14	Y0309305		Circuit Board, Erc				$ 209.64
15	Y0042226		Fan Motor		Appelez-nous	-
NI	31750005		Washer, Flat 1/4 X 5/8 O.d.		Appelez-nous	-
NI	0314812		Board, Erc Adapter 5800		Appelez-nous	-
NI	M0282005		Nut, Hex Keps No.6-32   (Replaces: 31750119)				$ 7.07
