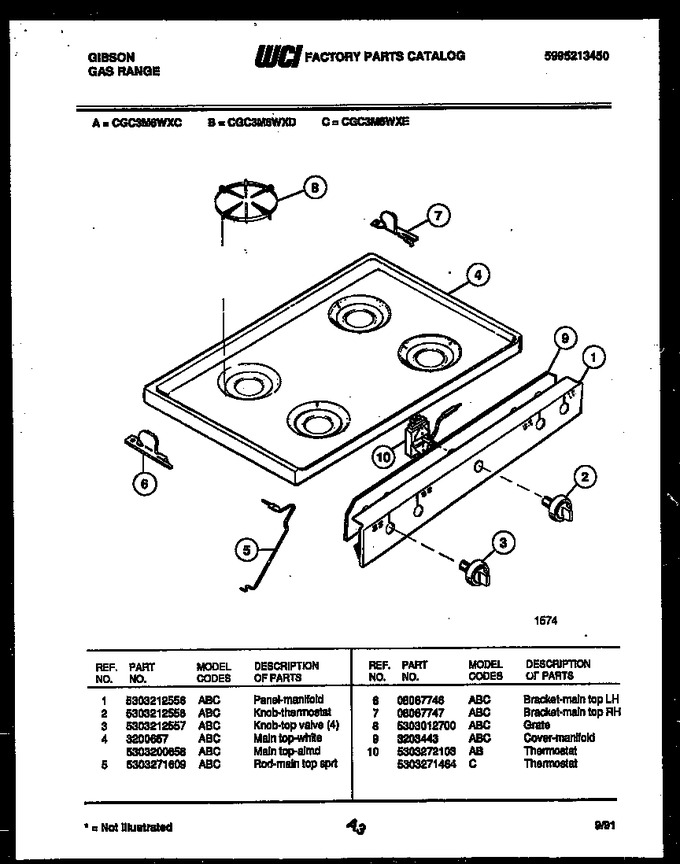

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212556 | Panel-manifold |
|
- | |||||
| 2 | 5303212558 | Knob-thermostat |
|
- | |||||
| 3 | 5303212557 | Knob-top Valve (4) |
|
- | |||||
| 4 | 5303200658 | Main Top (almd) |
|
- | |||||
| 4 | 3200657 | Main Top, White |
|
- | |||||
| 5 | 5303271609 | Rod - Main Top Sprt |
|
- | |||||
| 6 | 08067746 | Bracket, Main Top, Lh |
|
- | |||||
| 7 | 08067747 | Bracket, Main Top, Rh |
|
- | |||||
| 8 | 5303012700 | Grate |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 5303272103 | Thermostat |
|
- |
