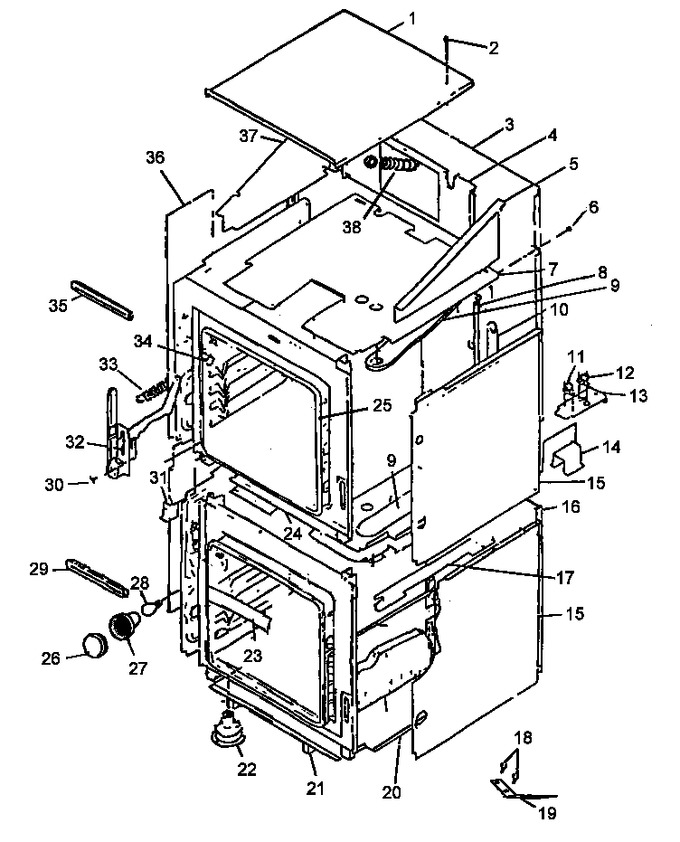

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0040286		Cabinet Top Pyro W.o. Mm		Appelez-nous	-
2	0305423		Screw No.8-18x3/8 Hex Hd.		Appelez-nous	-
3	Y0305628		Back, Upper Cabinet		Appelez-nous	-
4	Y0040745		Cont. Comp. Back Pyro W/o		Appelez-nous	-
5	Y0314834		Compartment, Control Rt		Appelez-nous	-
6	0305423		Screw No.8-18x3/8 Hex Hd.		Appelez-nous	-
7	Y0052848		Upper Oven Top		Appelez-nous	-
8	0305420		Retainer, Insulation-rear		Appelez-nous	-
11	Y0042056		Switch Fan Spdt		Appelez-nous	-
15	Y0060774		Retainer, Side Insul		Appelez-nous	-
18	0305423		Screw No.8-18x3/8 Hex Hd.		Appelez-nous	-
19	Y0060759		Retainer, Spring		Appelez-nous	-
20	Y0040752		Bottom, Lwr Oven		Appelez-nous	-
21	Y0041019		Runner, Base-pyro W/o		Appelez-nous	-
22	Y0058526		Smoke Eliminator		Appelez-nous	-
23	40850CG		Shield, Reflector (cg)		Appelez-nous	-
25	305620CG		Oven Shell (wall Oven)		Appelez-nous	-
26	WP74011278		Assy, Oven Light   (Replaces: Y0302471)				$ 101.56
27	WP74011278		Assy, Oven Light   (Replaces: Y0302472)				$ 101.56
28	Y0042175		Bulb, Light		Appelez-nous	-
30	0305423		Screw No.8-18x3/8 Hex Hd.		Appelez-nous	-
32	Y0052095		Hinge Assy		Appelez-nous	-
33	Y0042740		Spring, Oven Door-pyro W/o		Appelez-nous	-
34	Y0040848		Probe Recept. Cover Stainless		Appelez-nous	-
36	Y0052856		Panel, Side		Appelez-nous	-
37	Y0314835		Compartment, Control Lt		Appelez-nous	-
38	Y0052947		Assy, Conduit		Appelez-nous	-
NI	0040405		Chip Cover Pyro Wo		Appelez-nous	-
NI	Y0305797		Switch, Oven Door		Appelez-nous	-
