02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner Box Parts
06 - Body Parts
07 - Burner Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

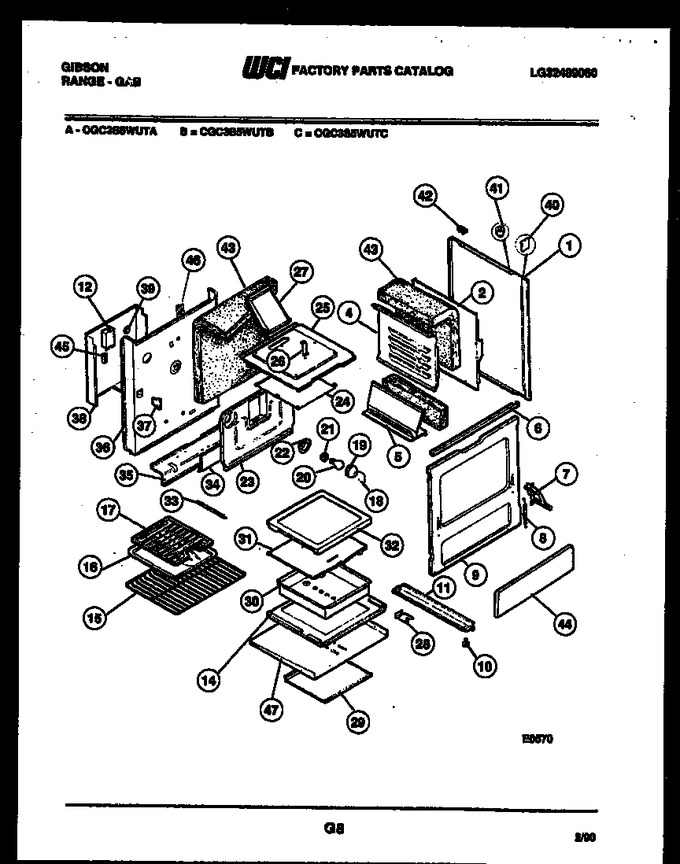

| 1 | 3051061 | Bodyside Pnl-white (2) |
|
- | |||||
| 2 | 3131794 | Shield Side Heat (2) |
|
- | |||||
| 5 | 3131053 | Shield-burner Box Rs |
|
- | |||||
| 6 | 3131811 | Support Control Pnl |
|
- | |||||
| 7 | 3205895 | Hinge - Oven Dr Right |
|
- | |||||
| 8 | 3009435 | Spring Oven Door (2) |
|
- | |||||
| 9 | 3205905 | Frame-front |
|
- | |||||
| 10 | 3051080 | Leg Leveler (4) |
|
- | |||||
| 11 | 08068047 | Rail - Base (2) |
|
- | |||||
| 12 | 3200669 | Spark Module |
|
- | |||||
| 16 | 3016973 | Pan-broiler |
|
- | |||||
| 18 | 3205904 | Retainer Oven Light Lens |
|
- | |||||
| 19 | 3131809 | Lens-oven Light |
|
- | |||||
| 20 | 3013071 | Bulb-oven |
|
- | |||||
| 21 | 3009410 | Receptacle Oven Lt |
|
- | |||||
| 24 | 08011509 | Baffle Broiler Burner |
|
- | |||||
| 25 | 3131802 | Liner Oven Top |
|
- | |||||
| 26 | 3131800 | Bracket,burner Box |
|
- | |||||
| 27 | 3016877 | Vent Box Assy |
|
- | |||||
| 28 | 3131041 | Bracket-installation |
|
- | |||||
| 29 | 58068050 | Shield Storage Drwr. |
|
- | |||||
| 30 | 08068046 | Pan Oven Burner |
|
- | |||||
| 31 | 3131823 | Baffle Bake Burner |
|
- | |||||
| 33 | 3016976 | Shield-capillary Bulb |
|
- | |||||
| 34 | 08068039 | Cover Control Valve |
|
- | |||||
| 35 | 3131831 | Support Control Valve |
|
- | |||||
| 36 | 3131833 | Back Main 30 S/c |
|
- | |||||
| 37 | 3051096 | Support,oven Rear |
|
- | |||||
| 38 | 08068038 | Cover Back Wire |
|
- | |||||
| 39 | 3131839 | Thermostat Bake Broil Select |
|
- | |||||
| 40 | 3131791 | Clip Backsplash Cvr |
|
$ 19.01 | |||||
| 41 | 3051063 | Grommet Plastic |
|
- | |||||
| 42 | 3016129 | Grommet Main Top |
|
- | |||||
| 43 | 3131795 | Insul. Ov. Wrap |
|
- | |||||
| 44 | A35049000 | Panel False |
|
- | |||||
| 45 | 08007985 | Terminal Block |
|
- | |||||
| 46 | 3131046 | Channel - Wire |
|
- | |||||
| 47 | 3131820 | Retainer Btm Insul |
|
- | |||||
| 14A | 3016875 | Lining Oven Bottom Bronze |
|
- | |||||
| 17A | 3016974 | Grid Broiler Pan Bronze |
|
- | |||||
| 22A | 3051511 | Cut Oven Light |
|
$ 60.22 | |||||
| 23A | 3016873 | Liner Oven Back Bronze |
|
- | |||||
| 32A | 3016975 | Oven Btm Pl Bronze |
|
- | |||||
| 43A | 3131840 | Insul. Ov. Top & Bttm. |
|
- | |||||
| 4A | 3016533 | Liner Right Side Bronze |
|
- | |||||
| 4C | 3016534 | Liner Left Side Bronze |
|
- | |||||
| 5A | 3131054 | Shield-burner Box, Ls |
|
- | |||||
| 7A | 3205894 | Hinge - Oven Dr Left |
|
$ 55.91 |
