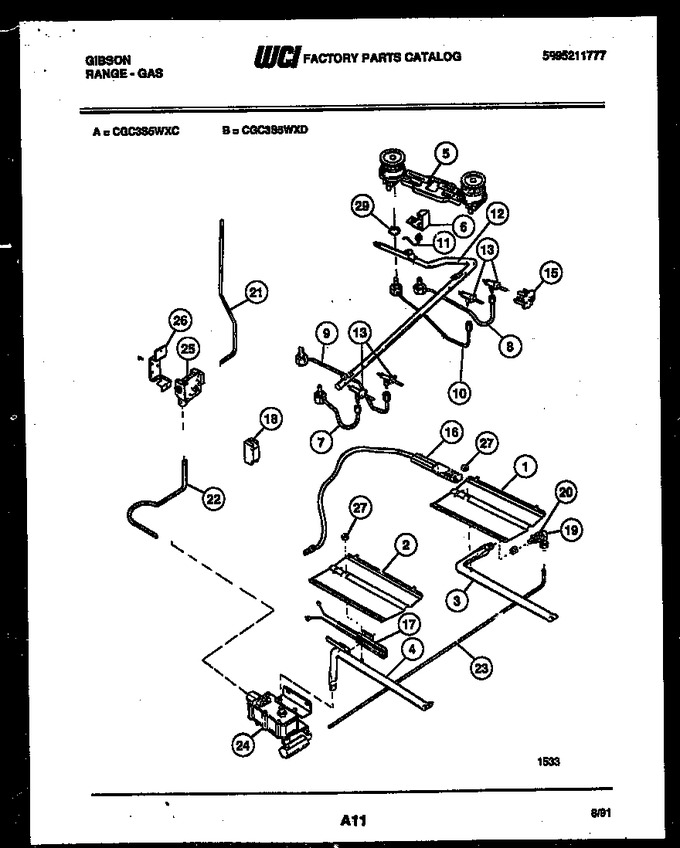

02 - Backguard
03 - Cooktop Parts
04 - Burner Parts
05 - Body Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210379 | Baffle-broiler |
|
$ 175.88 | |||||
| 2 | 3131284 | Baffle-oven |
|
$ 155.77 | |||||
| 3 | 08067935 | Burner-broiler |
|
$ 142.59 | |||||
| 4 | 3131290 | Burner-oven |
|
- | |||||
| 5 | 5303131147 | Burner-top Double (2) |
|
- | |||||
| 6 | 3016993 | Retainer Ignitor (2) |
|
- | |||||
| 7 | 5303271041 | Burner-tube-lf |
|
- | |||||
| 8 | 5303271044 | Burner-tube-rf |
|
- | |||||
| 9 | 5303271042 | Burner-tube-lr |
|
- | |||||
| 10 | 5303271043 | Burner-tube-rr |
|
- | |||||
| 11 | 3200276 | Base Ignitor (2) |
|
- | |||||
| 12 | 5303271375 | Manifold Pipe |
|
- | |||||
| 13 | 5303271680 | Valve-top 2 Pos (4) |
|
- | |||||
| 15 | 3131568 | Switch-ignitor |
|
- | |||||
| 16 | 5303935068 | Ignitor, Broiler Burner (Replaces: 5308067970) |
|
$ 166.55 | |||||
| 17 | 5303935066 | Ignitor, Oven (Replaces: 5303131300) |
|
Immediately | $ 59.58 | ||||
| 18 | 5303200669 | Ignitor-module |
|
- | |||||
| 19 | 08067979 | Mixer-elbow |
|
- | |||||
| 20 | 3131358 | Nut-hex |
|
- | |||||
| 21 | 5303208495 | Tube Alum W/ Fit (reg/manifold Pipe) |
|
- | |||||
| 22 | 5303208494 | Tube Alum W/ Fit (valve/reg) |
|
- | |||||
| 23 | 5303208493 | Tube-alum W/ Fit (valve/mixer) |
|
- | |||||
| 24 | 5303208499 | Valve-safety-dual |
|
Immediately | $ 559.67 | ||||
| 25 | 5303280582 | Control-regulator |
|
- | |||||
| 26 | 08067934 | Bracket-regulator |
|
- | |||||
| 27 | 154079601 | Nut (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 29 | 3013279 | Nut, Special |
|
$ 2.34 | |||||
| 24A | 3131737 | Washer-repair (non-illustrated) |
|
$ 5.59 | |||||
| 27A | 08068015 | Spud-50 (non-illustrated) |
|
- |
