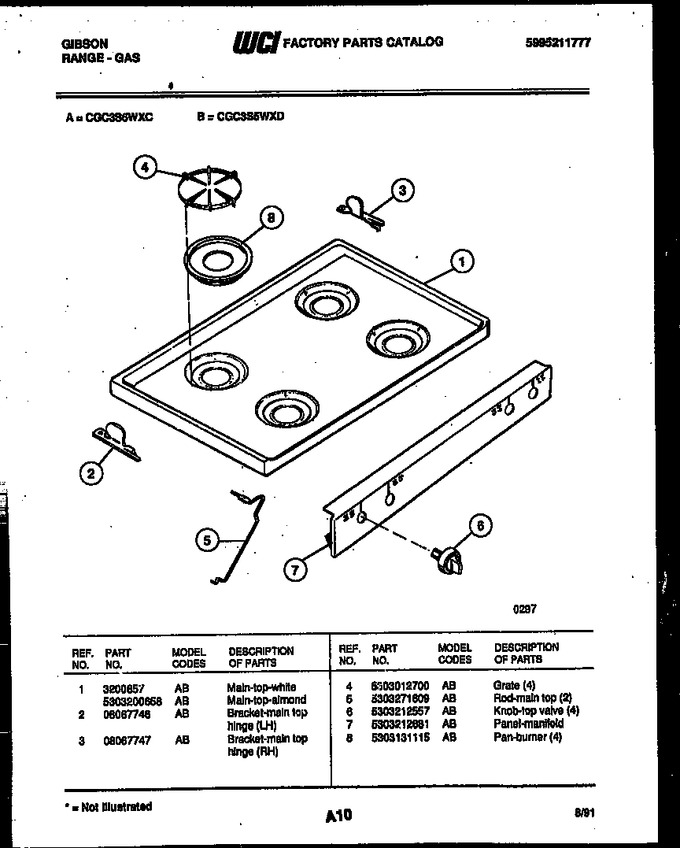

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303200658 | Main Top, Almond |
|
- | |||||
| 1 | 3200657 | Main Top, White |
|
- | |||||
| 2 | 08067746 | Bracket-main Top Hinge Lh |
|
- | |||||
| 3 | 08067747 | Bracket-main Top Hinge Rh |
|
- | |||||
| 4 | 5303012700 | Grate (4) |
|
- | |||||
| 5 | 5303271609 | Rod-main Top (2) |
|
- | |||||
| 6 | 5303212557 | Knob-top Valve (4) |
|
- | |||||
| 7 | 5303212681 | Panel-manifold |
|
- | |||||
| 8 | 5303131115 | Pan-burner (4) |
|
$ 15.62 |
