SELECT A DIAGRAM

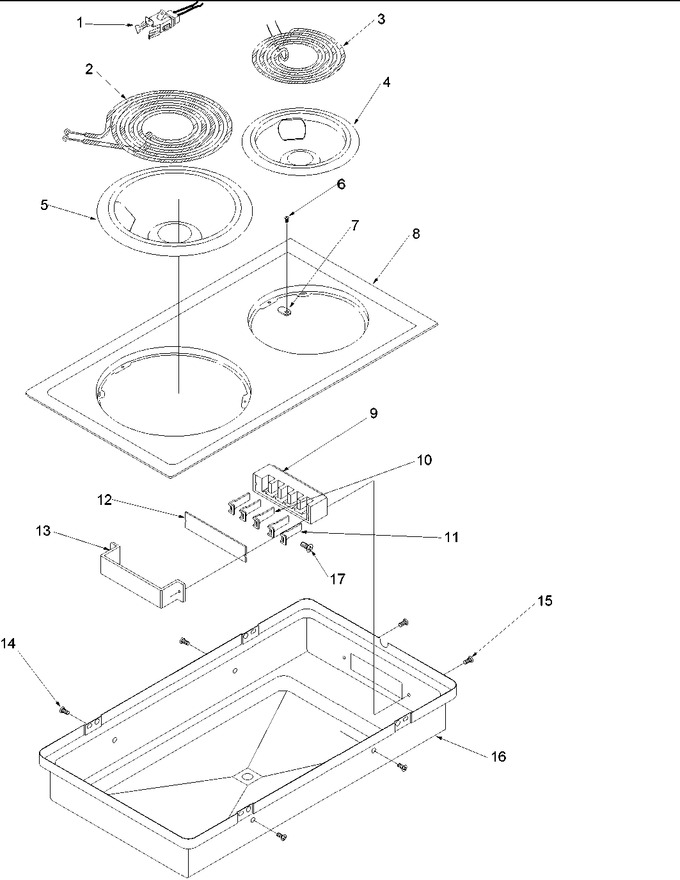

01 - Acr110 And Cc1xf Electric Coil


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
2	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: 31734607)				$ 163.63
3	WPW10259868		Element, 4 Turn (1500w) 6``   (Replaces: 31734602)			Immediately	$ 112.28
4	W10290353RW		Bowl, Small Burner   (Replaces: 305837B)			Immediately	$ 19.27
5	WPW10290350		Bowl, Large Burner (blk)   (Replaces: 305839B)			Immediately	$ 15.25
6	31750304		Screw, No.6-32 X .500 Pan Hd Ph		Appelez-nous	-
7	M0282005		Nut, Hex Keps No.6-32   (Replaces: 31750119)				$ 7.07
8	317097SS		Module Top-ccissf		Appelez-nous	-
9	Y0314569		Module, Plug Block		Appelez-nous	-
10	Y0052041		Contact, Spade-ground				$ 4.83
11	Y0052040		Contact, Spade-power		Appelez-nous	-
12	Y0041994		Insulator-cooktop Module		Appelez-nous	-
13	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
14	31750305		Screw, No.6-32 X .375 Pan Hd Ph		Appelez-nous	-
15	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
16	31745301		Pan, Module (galv)		Appelez-nous	-
17	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: 31750401)			Immediately	$ 6.47
NI	Y0317112		Harness, Burner		Appelez-nous	-
NI	31750803		U-clip, Safe Edge		Appelez-nous	-
NI	0043666		5644044 Jumper Wire		Appelez-nous	-
