01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer

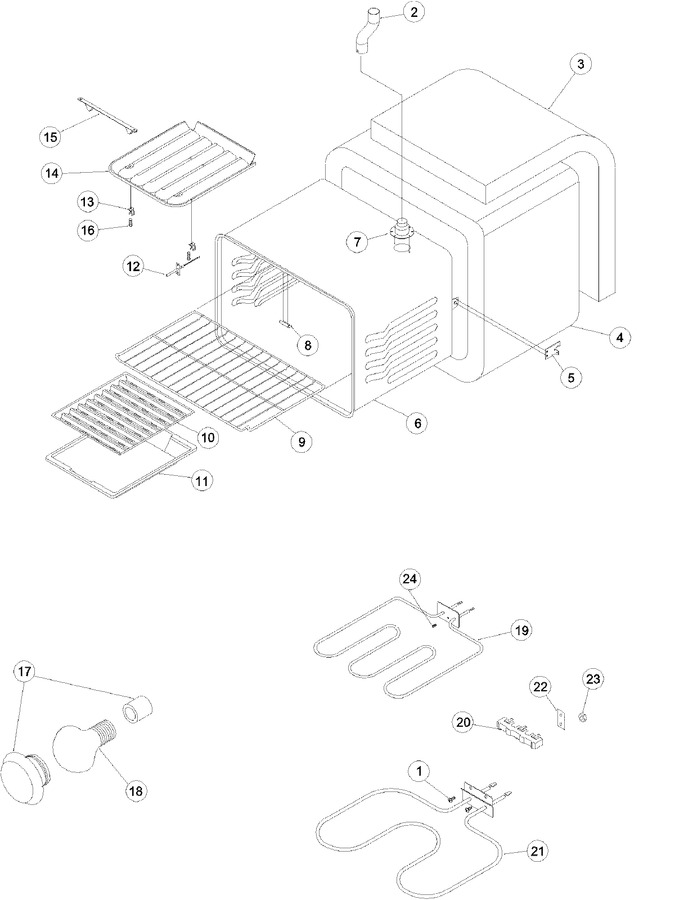

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: 31750507)			Immediately	$ 6.85
2	31938101		Tube, Vent		Appelez-nous	-
3	31976601		Insulation, Top (rr)		Appelez-nous	-
4	31976501		Insulation, Wrapper		Appelez-nous	-
5	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
6	31821101CG		Oven Shell (el. W/lt)		Appelez-nous	-
7	31938201		Eliminator, Smoke		Appelez-nous	-
8	Y0315022		Cover, Chip		Appelez-nous	-
9	WP314763J		Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J)				$ 70.11
10	4396923		Grid, Broiler (cg)   (Replaces: 304451CG)			Immediately	$ 52.04
11	4396923		Pan, Broiler (cg)   (Replaces: 314175CG)			Immediately	$ 52.04
12	31968201		Sensor, Temperature				$ 106.76
13	0315402		Bracket, Mounting		Appelez-nous	-
14	Y0315403		Reflector, Broil Element		Appelez-nous	-
15	Y0061557		Bracket, Reflector Mounting		Appelez-nous	-
16	Y0097822		Rivet, Pop		Appelez-nous	-
17	31823701		Oven Light Assy		Appelez-nous	-
18	Y0042175		Bulb, Light		Appelez-nous	-
20	WP8203546		Terminal Block   (Replaces: Y0306378)			Immediately	$ 27.12
21	WP77001094		Element, Bake (240v-2500w)   (Replaces: Y0059552)			Immediately	$ 39.58
22	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65
23	31750124		Hex Nut (nkl)		Appelez-nous	-
24	WP693995		Screw, No.8-18 X 3/8 P Hex Wsh T   (Replaces: 31750432)			Immediately	$ 6.47
24	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
