SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Cooktop


04 - Broiler Drawer


05 - Oven Door


06 - Burners


07 - Body


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018860		Bracket-broiler Hinge (lh)		Appelez-nous	-
1	3200673		Bracket-broiler Hinge (rh)		Appelez-nous	-
2	3131386		Fastener, Push Nut (2)		Appelez-nous	-
3	3018608		Body, Broiler		Appelez-nous	-
4	3018614		Pin, Hinge (2)		Appelez-nous	-
5	3018618		Spring, Broiler Lh C Type		Appelez-nous	-
5	3018619		Spring, Broiler, Rh, C Type		Appelez-nous	-
6	3202803		Liner, Broiler Drawer		Appelez-nous	-
7	3131134		Panel-broiler-almond		Appelez-nous	-
8	5303280334		Handle		Appelez-nous	-
9	3131387		Fastener-spacer (2)		Appelez-nous	-
10	3018610		Glide, Broiler (4)				$ 29.40
11	5303131356		Insert-broiler Pan		Appelez-nous	-
12	5303051818		Screw (4) (non-illustrated)		Appelez-nous	-
12	5303131258		Insulation, Broiler Drawer (non-illustrated)		Appelez-nous	-
12	5303013568		Pan-broiler		Appelez-nous	-
13	3131153		Channel, Broiler (4)		Appelez-nous	-
*18920	3206216		Button Glide		Appelez-nous	-

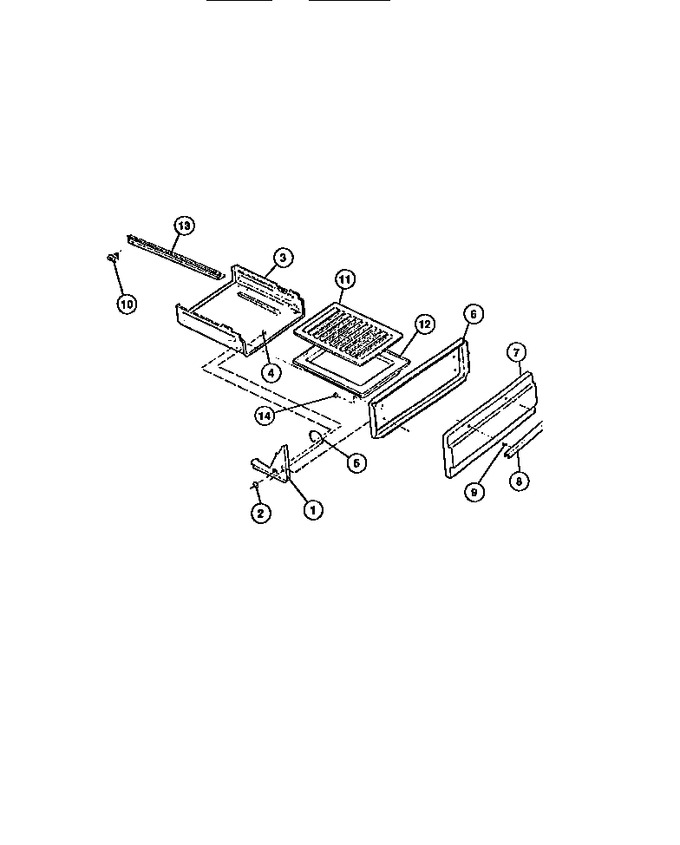

    View Diagram in Separate Window       Print Part List
