01 - Cabinet
02 - Cavity
03 - Main Top And Backguard
04 - Oven Door And Storage Drawer
05 - Supplemental Information
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

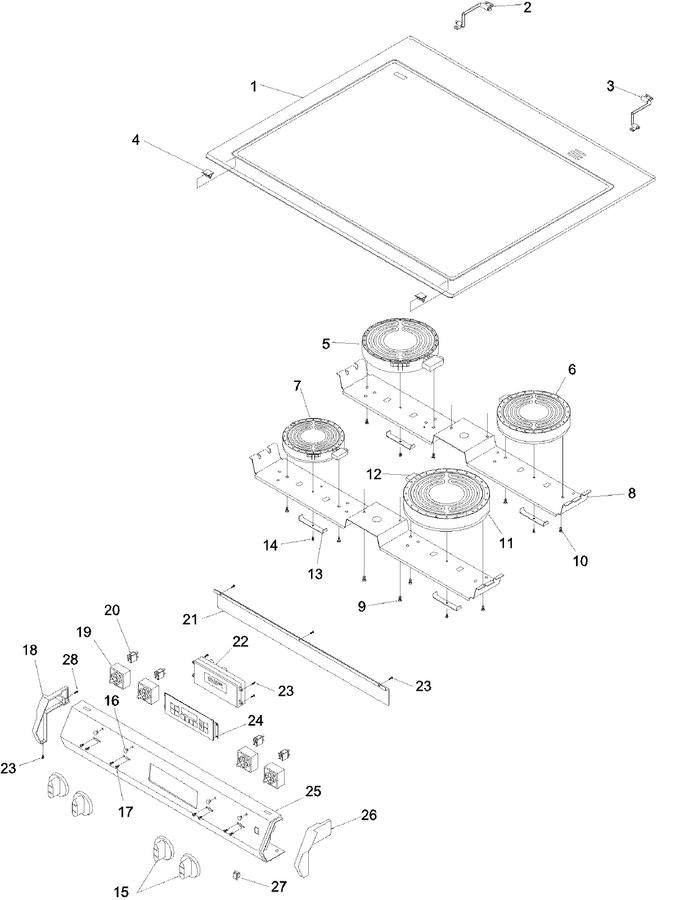

| 1 | 32059704SS | Main Top Assy (ss) |
|
- | |||||
| 2 | 31769702 | Hinge, Main Top (lt) |
|
- | |||||
| 3 | 31769701 | Hinge, Main Top (rt) |
|
- | |||||
| 4 | Y0316394 | Clip, Spring |
|
- | |||||
| 5 | W10823710 | Element, Ribbon 8`` 240v/2000w (Replaces: 31939101) |
|
Immediately | $ 330.41 | ||||
| 6 | W10823699 | Element, Ribbon 7`` 240v/1500w (Replaces: 31939001) |
|
Immediately | $ 145.67 | ||||
| 7 | 31938901 | Element, Ribbon 6`` 240v/1200w |
|
- | |||||
| 8 | Y0316165 | Bracket, Element |
|
- | |||||
| 9 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 10 | 31750715 | Screw, Shoulder Ab 6-20 X .825 |
|
- | |||||
| 11 | W10823726 | Element, Dual Radiant (Replaces: 32054701) |
|
$ 308.80 | |||||
| 12 | 0316689 | Limiter-dual |
|
- | |||||
| 13 | Y0306683 | Spring, Element |
|
- | |||||
| 14 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701) |
|
Immediately | $ 12.65 | ||||
| 15 | 31926618B | Knob, Switch (blk) |
|
- | |||||
| 16 | 31780502 | Lens, Indicator Light |
|
- | |||||
| 17 | 31750714 | Screw, No.8-32 X 1/4 |
|
- | |||||
| 18 | 31742701B | End Cap, Cont Pnl (lt-blk) |
|
- | |||||
| 19 | WP74011243 | Switch, Infinite (Replaces: 32069501) |
|
$ 115.88 | |||||
| 20 | 31722801 | Light, Indicator (125v) |
|
- | |||||
| 21 | 0316650 | Heat Shield, Control Panel |
|
- | |||||
| 22 | 77001242 | Erc, Control Module | 01 |
|
$ 341.93 | ||||
| 22 | 31949201 | Control, Electronic Range | 00 |
|
$ 348.50 | ||||
| 23 | 31750315 | Screw, No.6-20 X .375 Panhd(blk) |
|
- | |||||
| 24 | 32061701B | Panel, Membrane Switch (blk) |
|
$ 184.64 | |||||
| 25 | 77001172 | Panel, Control-plain (ss) |
|
- | |||||
| 25 | 77001173 | Panel, Control-screened (ss) |
|
- | |||||
| 25 | 32053301B | Panel, Control-screened (blk) |
|
- | |||||
| 26 | 31742704B | End Cap, Cont Pnl (rt-blk) |
|
- | |||||
| 27 | 31986601B | Switch, Rocker (blk) |
|
$ 36.28 | |||||
| 28 | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: 31750701) |
|
Immediately | $ 12.65 | ||||
| NI | Y0316164 | Harness, Wire (radiant Top) |
|
- | |||||
| NI | 77001027 | Harness, Wire Infinite/radiant |
|
- |
