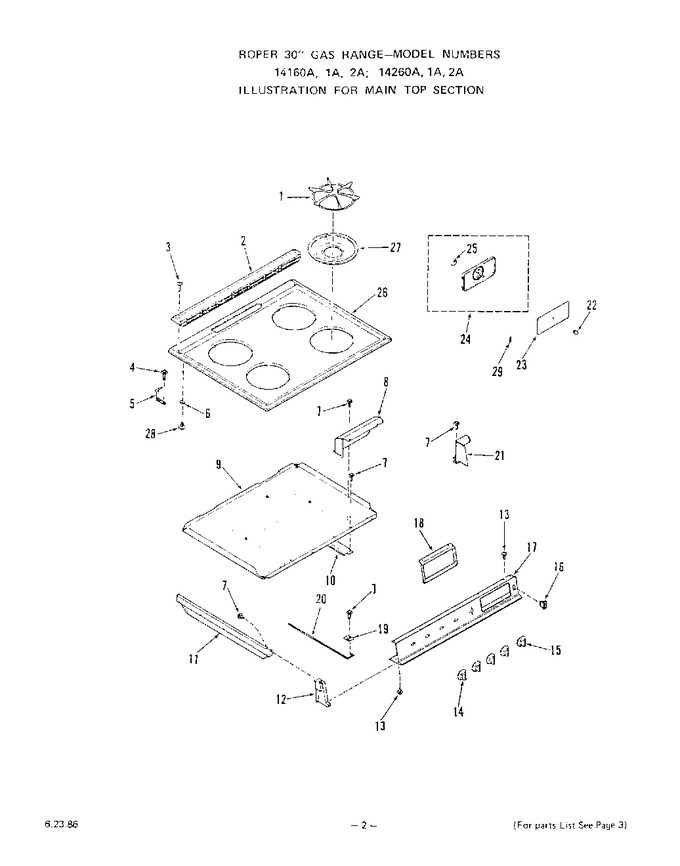

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
2	330738		Cover-vent		Appelez-nous	-
3	332285		Screw 6-32		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	331514		Hinge-main Top (left 14160a Models)		Appelez-nous	-
5	334843		Hinge-main Top (right 14161a, 2a; 14261 A,2a)		Appelez-nous	-
5	334844		Hinge-main Top (left 14161a, 2a; 14261 A,2a)		Appelez-nous	-
5	331513		Hinge-main Top (right 14160a Models)		Appelez-nous	-
6	335161		Bracket-hinge		Appelez-nous	-
7	327320		Screw 10-16x7/16``		Appelez-nous	-
8	330975		Cover-wire		Appelez-nous	-
9	330386		Burner Box Bottom		Appelez-nous	-
10	330558		Stiffener-burner Box Bottom		Appelez-nous	-
11	334877		Extension-burner Box Side (14161a, 2a; 14261a, 2a Models)		Appelez-nous	-
11	330343		Extension-burner Box Side (14160a, 14260a Modles)		Appelez-nous	-
12	330344		End Cap-manifold Panel (left)		Appelez-nous	-
12	330345		End Cap-manifold Panel (right)		Appelez-nous	-
13	316849		Screw-10-32x1/2``		Appelez-nous	-
14	327484		Knob-gas Valve (4 Req)		Appelez-nous	-
15	322981		Knob-thermostat		Appelez-nous	-
16	334649		Switch-oven Light (14161a, 2a; 14261a, 2a Models)		Appelez-nous	-
16	334564		Switch-oven Light (14160a, 14260a Models)		Appelez-nous	-
17	331371		Manifold Panel		Appelez-nous	-
18	330337		Bracket-clock		Appelez-nous	-
19	326348		Clamp-support Rod		Appelez-nous	-
20	326066		Support Rod-main Top		Appelez-nous	-
22	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
23	323176		Glass-clock		Appelez-nous	-
24	330839		Clock		Appelez-nous	-
25	283296		Motor-clock		Appelez-nous	-
26	330378		Top-main (chrome 1426x0a Models)		Appelez-nous	-
26	334861		Top-main (white 1416w1a, 2a Models)		Appelez-nous	-
26	331366		Top-main (white 1416w0a Models)		Appelez-nous	-
26	334858		Top-main (chrome 1426x1a,2a Models)		Appelez-nous	-
26	334862		Top-main (almond 1416l1a, 2a Models)		Appelez-nous	-
26	331367		Top-main (almond 1416l0a Models)		Appelez-nous	-
27	330427		Aeration Pan (4 Req)		Appelez-nous	-
28	286628		Screw 10-32x5/16``		Appelez-nous	-
29	335073		Clip-clock Bezel		Appelez-nous	-
29	335204		14162a, 14262a Models		Appelez-nous	-
29	331327		14160a, 1a; 14260a, 1a Models		Appelez-nous	-
	335188		Xlist-repair Parts		Appelez-nous	-
