SELECT A DIAGRAM

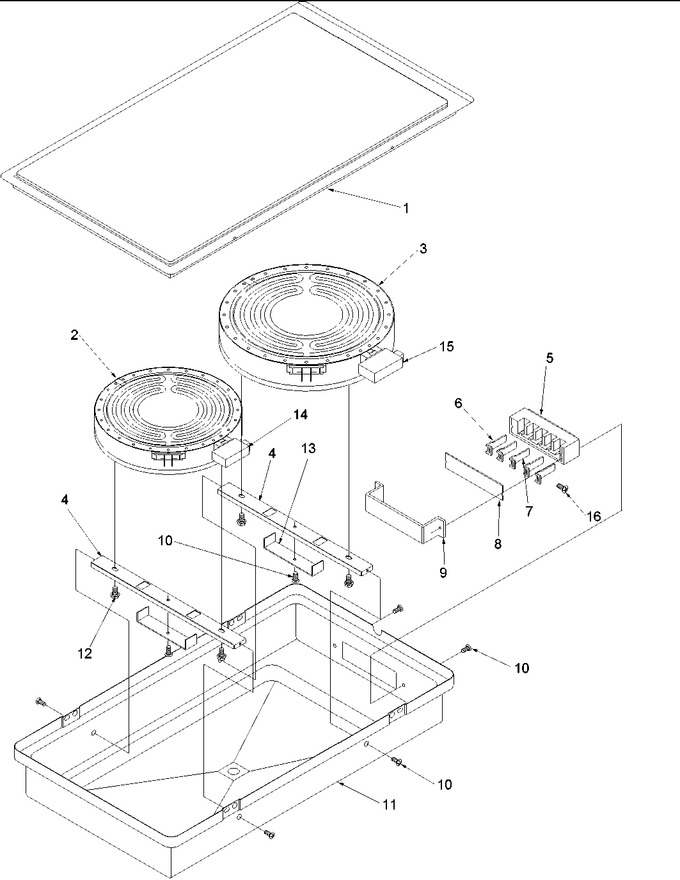

01 - Act100, Act101, Cc14, And Xst2072


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31729805W		Assy, Top ( Classic White)		Appelez-nous	-
2	0316131		Element, Ribbon 1200w		Appelez-nous	-
3	W10823710		Element, Ribbon 2000w   (Replaces: Y0316130)			Immediately	$ 330.41
4	Y0316133		Brkt, Element Mtg		Appelez-nous	-
5	Y0314569		Module, Plug Block		Appelez-nous	-
6	Y0052040		Contact, Spade-power		Appelez-nous	-
7	Y0052041		Contact, Spade-ground				$ 4.83
8	Y0041994		Insulator-cooktop Module		Appelez-nous	-
9	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
10	W11245710		Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: 31750410)			Immediately	$ 12.65
11	31745301		Pan, Module (galv)		Appelez-nous	-
12	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	0316904		Tod, Limiter D014		Appelez-nous	-
15	0316903		Tod, Limiter C017		Appelez-nous	-
16	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: 31750401)			Immediately	$ 6.47
NI	CERAMABRYTE		Ceramic Cooktop Cleaner   (Replaces: R9900414)			Immediately	$ 9.95
NI	WA906B		Scraper, Safety   (Replaces: Y0314434)			Immediately	$ 4.86
NI	WP8281227		Screw, No.8-18 X 7/16 P Hex Wsh   (Replaces: 31750429)				$ 9.40
NI	31901501		Instal, Modules (cartridges)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
