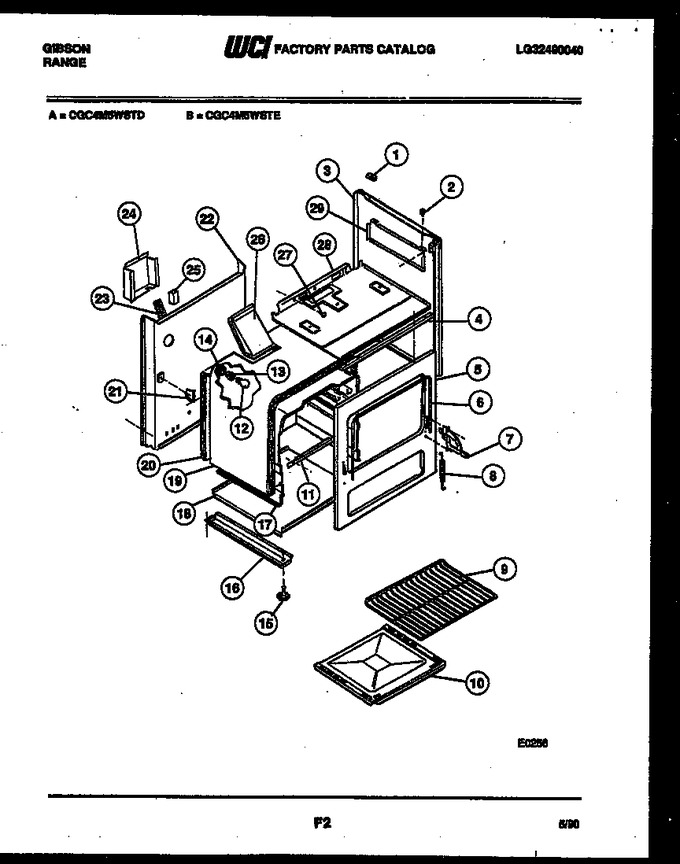

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303016129		Grommet Main Top		Appelez-nous	-
2	3205587		Grommet		Appelez-nous	-
3	5364013004		Panel-body Side (almond)		Appelez-nous	-
3	5303051061		Panel-body Side (white)		Appelez-nous	-
4	3131811		Support Control Pnl		Appelez-nous	-
5	3205578		Front - Frame		Appelez-nous	-
6	5308008022		Seal,oven Door				$ 124.89
7	5303204670		Hinge-oven Door Rh		Appelez-nous	-
8	5308008028		Spring-oven Door		Appelez-nous	-
9	5303015714		Rack Oven (2)		Appelez-nous	-
10	3018282		Liner-oven-bottom		Appelez-nous	-
11	3131038		Support-oven Btm		Appelez-nous	-
12	40A15		Bulb, Oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
13	5303009410		Recept-oven Light		Appelez-nous	-
14	3051511		Cup, Oven Light				$ 60.22
15	5303051080		Leveling Leg		Appelez-nous	-
16	5308068047		Base Rail		Appelez-nous	-
17	3018284		Liner Rh		Appelez-nous	-
18	3011645		Bottom - Main		Appelez-nous	-
19	3017171		Insulation - Wrap		Appelez-nous	-
20	3017172		Insulation - Back		Appelez-nous	-
21	3051096		Support,oven Rear		Appelez-nous	-
22	5303013340		Main Back		Appelez-nous	-
23	3131046		Channel - Wire		Appelez-nous	-
24	08013953		Cover-spark Module		Appelez-nous	-
25	5303209931		Spark Module		Appelez-nous	-
26	3017173		Vent Box		Appelez-nous	-
27	08008051		Bushing - Nylon Snap		Appelez-nous	-
28	3017174		Bottom Burner Box		Appelez-nous	-
29	5303131054		Shield-burner Box Lh		Appelez-nous	-
29	5303131053		Shield-burner Box Rh		Appelez-nous	-
*24357	3131791		Clip,bodyside				$ 19.01
17A	3018285		Liner Lh		Appelez-nous	-
17B	3018347		Liner - Top		Appelez-nous	-
17C	3018286		Liner-back		Appelez-nous	-
7A	5303204672		Hinge-oven Door Lh		Appelez-nous	-
