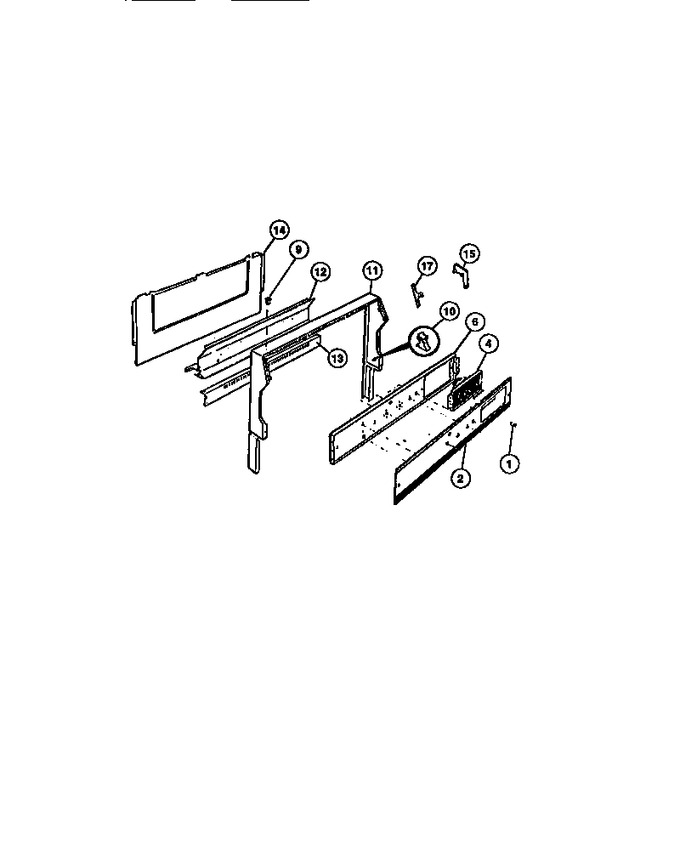

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131472 | Knob-clock |
|
- | |||||
| 2 | 5303212559 | Panel-control |
|
- | |||||
| 4 | 5303212519 | Clock-single Stem |
|
- | |||||
| 6 | 5303274449 | Plate-instrument Mounting |
|
- | |||||
| 9 | 5303208662 | Switch-rocker Oven Switch |
|
- | |||||
| 10 | 5303131237 | Support, Backguard |
|
- | |||||
| 11 | 5303210609 | Trim, Wrapper |
|
- | |||||
| 12 | 5303212535 | Trim-lower Splasher (almond) |
|
- | |||||
| 13 | 3131241 | Trim-vent |
|
- | |||||
| 14 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 15 | 3131229 | Cap, End (lh) |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer |
|
- | |||||
| 15A | 3131230 | Cap, End (rh) |
|
- |
