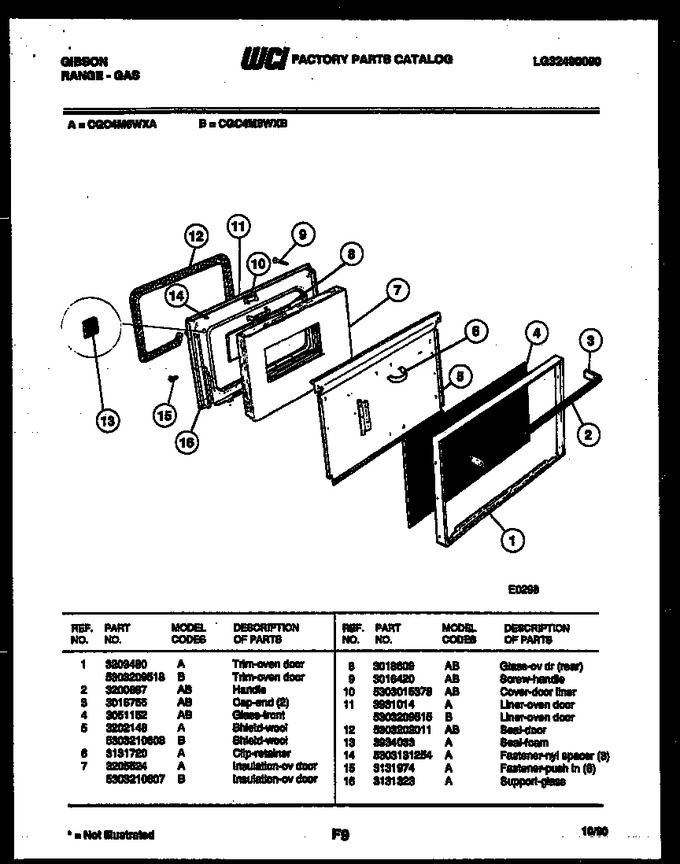

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203480 | Trim, Oven Door |
|
- | |||||
| 2 | 3200887 | Handle |
|
- | |||||
| 3 | 3016755 | Cap, End (2) |
|
- | |||||
| 4 | 3051152 | Glass, Front |
|
- | |||||
| 5 | 3202148 | Shield-wool |
|
- | |||||
| 6 | 3131720 | Clip, Retainer |
|
- | |||||
| 7 | 3205524 | Insulation-ov Door |
|
- | |||||
| 8 | 3018609 | Glass-ov Dr (rear) |
|
- | |||||
| 9 | 3016420 | Screw, Handle |
|
- | |||||
| 10 | 5303015373 | Cover-door Liner |
|
- | |||||
| 11 | 3931014 | Liner-oven Door |
|
- | |||||
| 12 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 13 | 3934033 | Seal, Foam |
|
- | |||||
| 14 | 5303131254 | Fastener-nyl Spacer (3) |
|
- | |||||
| 15 | 3131974 | Fastener, Push In (6) |
|
- | |||||
| 16 | 3131323 | Support, Glass |
|
- |
